3 steps to read csv files from SharePoint

3 steps to read csv files from SharePoint

In this post I will give a pattern for reading a csv file form SharePoint.

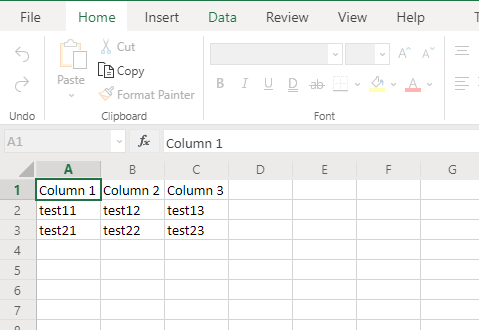

An example csv file

For this post I created a csv file with 3 columns and two rows of data.

Example CSV file

I uploaded this csv file to SharePoint, ready to be read by my Flow.

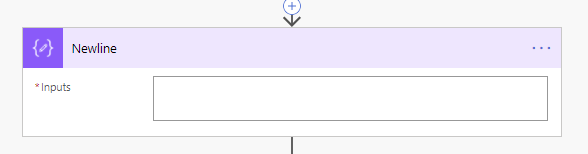

Newline

Later on we will use the output from a compose action with just a new line.

3 steps to read csv files from SharePoint Microsoft Power Automate, Microsoft SharePoint

The flow to read csv files

After I built my flow I ended up with a json object in my flow that contained all the information from my csv file.

3 steps to read csv files from SharePoint

Only 3 steps needed to complete this task.

How to read a csv file from SharePoint.

This is the easy part. The get file content action will do this for you.

$content as reeturned by read content action

See there, we have $content! Ready to be converted to json.

Convert the CSV file to json

Ok, this is the tricky part.

The Filter Array action does two things. The obvious bit is that I want to filter out the empty lines as there is no need to process these.

Filter Array to clean the CSV content

The the From setting is where I’m turning the $content into an array of data that can be filtered.

json(
  uriComponentToString(
    replace(
      replace(
        uriComponent(
          split(
            replace(
              base64ToString(
                body('Get_file_content')?['$content']
              ),
              ',',';'),
           outputs('Newline')
         )
       ),
       '%5Cr',
       ''),
    '%EF%BB%BF',
    '')
  )
)
That expression doesn’t need any explanation, as it is as clear as mud!

The base64ToString function turns the weird looking characters in $content into something that already looks like the data in my csv.

base64ToString(
   body('Get_file_content')?['$content']
)

Then the replace around that replaces my commas with semi colons. The reason why I’m doing this is because the commas may cause some problems within my csv data.

replace(
base64ToString(
body('Get_file_content')?['$content']
),
',',';'),

Then in the rest of the large expression I’m removing some of the junk that excel adds to csv files. (‘%EF%BB%BF’ and ‘%5Cr’)

You will also have noticed the outputs(‘Newline’). This is referring to a compose action in which I just pressed enter.

The final step

The final step of the flow has again 2 reasons.

  1. The first line of csv files contains headers rather than data and should be ignored.
  2. turn the column names into json labels.

In one of my favourite actions in Flow, the select action, I will use to skip the headers, the following expression:

skip(body('Filter_array'),1)

Ok, that was easy!

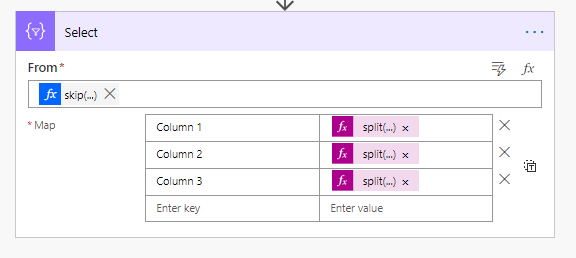

The final step
Now in each of the mapping we can use the following expressions:
split(item(),';')[0]
split(item(),';')[1]
split(item(),';')[2]

If you are interested in a single step then you could also up vote the idea on the forum. Although when only 3 steps are required to read rows form a CSV file, there will hardly be a benefit 😉

Large CSV files

This all worked quite well until some people started complaining about larger CSV files. When you use larger csv files you may get the following error

InvalidTemplate. Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘6808’: ‘The template language function ‘uriComponent’ was invoked with invalid parameters. The parameter at index ‘0’ cannot be converted to URI component.’.

3 steps to read csv files from SharePoint Microsoft Power Automate, Microsoft SharePoint

So what does that mean?

the uriComponent function is complaining that it is getting invalid data. The error message is even giving us the clue where to look! The first parameter is wrong ( See the error message at index ‘0’)

uriComponent(
   split(
      replace(
         base64ToString(
            body('Get_file_content')?['$content']
         ), ',',';'
      ),
      outputs('Newline')
   )
)

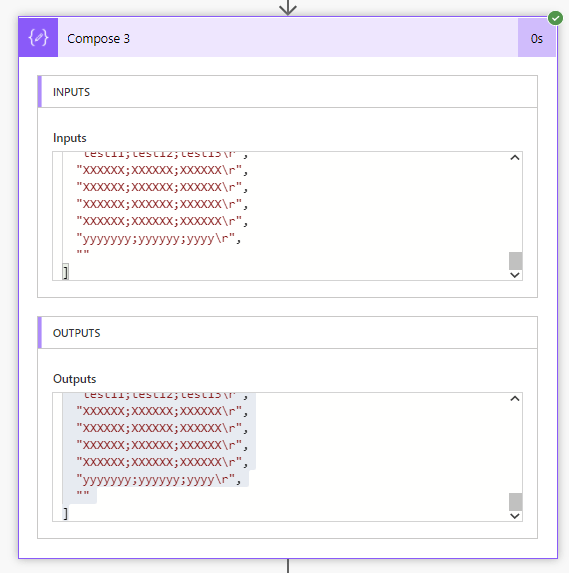

When I added the above expression to a compose action, I got the following output when my file exceeded 2622 lines. It all still looked the same as when I had less lines. The empty line is there because I edited the document in Excel and there is an additional line saved, but that is not a problem.

3 steps to read csv files from SharePoint Microsoft Power Automate, Microsoft SharePoint

So what is the problem?

It looks like the uriComponent functions can only handle so much data. I reduced my file back to 2621 lines and my flow is successful. No I’m adding an extra column and the same error message appears.

This also explains why some of my followers mentioned a problem after a few thousand rows and some others mentioned the problem after 300 rows. It all depends on the data.

So how do we resolve this?

The easiest way is probably to split the csv file into smaller chunks. So that once we have read it and converted it from base64 to string and split it by the new lines then we could take a set number of lines from the csv file. But this number will depend on the width of the csv file.

To do this the following code could be added to a compose actions and then section could be added

       split(
            replace(
              base64ToString(
                body('Get_file_content')?['$content']
              ),
              ',',';'),
           outputs('Newline')
         )

Then using the take function the first so many items could be collected and processed and the using the skip function the second part of the csv file could be handled afterwards.

Handling simple CSV data

This expressions that I just mentioned could also be used by itself.

split(replace(base64ToString(body('Get_file_content')?['$content']), ',', ';'),outputs('Newline'))

resulting in the following flow:

3 steps to read csv files from SharePoint Microsoft Power Automate, Microsoft SharePoint

Now the limit of the number of lines has gone and potentially we could now do the cleanups in each of the Columns in the Select action.

58 thoughts on “3 steps to read csv files from SharePoint

  1. Thanks Pieter, this is awesome – just what I’ve been looking for! Thought I was going to need to use a third-party service for this.

    One thing – it looks like there’s a reference to an action called “Newline” in the main expression, which currently doesn’t appear in your article above. I found that I if I added a Compose action renamed to “Newline” just above the “Filter array” action, and typed a single carriage return into the action’s “Inputs” field, it made everything work a treat.

  2. Hello, very helpful. Can you share the full flow with us because I couldn’t reapply it. Thanks !

  3. I am getting such error on filter array using your code: Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘3308’: ‘The template language function ‘uriComponent’ was invoked with invalid parameters. The parameter at index ‘0’ cannot be converted to URI component.’.

  4. Hello,
    Data is there, I checked. Issue lies in split, it just doesn’t catch it. I have even converted data so \r\n is replaced by |. So i do
    json(
    uriComponentToString(
    replace(
    replace(
    uriComponent(
    split(
    outputs(‘ConvertEOL’),
    ‘|’)
    ),
    ‘%5Cr’,
    ”),
    ‘%EF%BB%BF’,
    ”)
    )
    )

    Where outputs looks like: “column1;column2|data1;data2|data3;data4|..etc”

  5. I need help after the get file content. I add the filter array but when I execute the flow it gives error “The value must be of type array.”?

    1. Hi Sherwin,

      I would take the input that you are using for the Filter Array action and put it into a compose action. Then run the flow and see what the data is that you get? If this isn’t an array or if there isn’t any data then slowly take away bits of the expression and check where the unexpected data processing is happening.

  6. Hi, great method, and thanks for sharing, I have a couple of questions though. in the section Convert the CSV file to json, it has an item expression in the value field (where the value is not equal to null), can you confirm what that need to be, I have tried to enter item() but my flow keeps turning it into triggerbody(item) instead of this item? Also I am getting the error “Unable to process template language expressions in action ‘Filter_array’ inputs” and have tried to implement the fix mentioned in the comments but getting nowhere, my data is fine, I dont have any blanks or blank rows or anything the I can confirm that the outputs show exactly what I was expecting. Help?

    1. Hi Rob,

      The advanced expression should be

      @not(equals(item(), ''))

      I think that when you get the template language expression error that there is something wrong with the input of the filter action. this could for example happen when the input contains characters important to json itself. e.g. ” or @ or anything else that json might see as a special character. I would need to look at the actual data to get a better feel for that problem.

  7. Hi Pieter, thanks for that, I have updated the item expression and I think that is OK, although it has the wrong icon on it!

    This is from the exchange report export and after I have edited to ; delimited and | instead of returns Im left with something that looks like this:

    “Report Refresh Date;User Principal Name;Display Name;Is Deleted;Deleted Date;Created Date;Last Activity Date;Item Count;Storage Used (Byte);Issue Warning Quota (Byte);Prohibit Send Quota (Byte);Prohibit Send/Receive Quota (Byte);Deleted Item Count;Deleted Item Size (Byte);Report Period\r|2020-06-06;arcnsm@hants.gov.uk;Martin, Shaun;False;;2018-04-27;2020-06-06;170885;101752206840;105226698752;106300440576;107374182400;52846;12081470886;30\r

    from what you said, I’m wondering if either the \r or @ symbols in the email are causing issues, I dont really know how to remove the \r, I have to use

    replace(replace(body(‘Get_file_content’),decodeUriComponent(‘%0A’),’|’), ‘,’, ‘;’)

    to get rid of the \n in the first instance. Then the next question would be how to translate the @ symbol so it can be used? Is there something in the header row thats causing a problem? Maybe I need to delete the headers?

    1. You could replace the @ with an @@ so that it is escaped. These problems can be a real pain.

      If you need any detailed help we can have a chat about making this work. please feel free to hit the chat button on this site.

  8. Hi Pieter, I got it to work in the end, as my csv was not being generated by Excel I removed the uricomponent / uricomponenttostring sections. In order to diagnose the issue more effectively I also broke each step down into separate steps

    Just to let you know as well you can remove those special characters with encoding the whole string to URIsafe, you can do another

    replace(body(‘Get_file_content’)?[‘$content’], decodeuricomponent(%EF%BB%BF), ”)

    There are a couple of things you could add here that might be helpful, how to convert that array back into an object so we can use parseJSON, also I find with these that once done, in order to do more with it, you need to push it through an apply to each command, which in most cases will be locked down to a maximum of 5000 rows.

    Just to finish, this post has been exceptionally useful and your help on chat was very valuable, thank you Pieter for your help with this and if you need anything, let me know!

    1. Hi Rob,

      Thank you for your comments and feedback.

      It is great to hear that you got it to work at the end.

      In general I skip the parse json other than when I use parse json to validate data. But I agree that it can help make flow development just that little bit easier.

  9. Correct to include a valid reference to ‘Newline’ for the input parameter(s) of action ‘Filter_array’. I’m getting this error with filter array step. can you advise ? I have only 2 columns with my excel name and group.

  10. I’m also getting same error “Correct to include a valid reference to ‘Newline’ for the input parameter(s) of action ‘Filter_array’.” could you help me

    1. There isn’t really a great way around that, but what you could do it replace ‘”,”‘ with ‘”###”‘ before processing your csv. Now your csv separator is ### and the commas in the csv data will be processes as you want.

  11. Hi Pieter,

    Your solution looks fantastic! Life Saver indeed.

    I followed into my solution, but I am getting error on Select action as-

    failed: ‘The template language expression ‘split(item(),’;’)[1]’ cannot be evaluated because array index ‘1’ is outside bounds (0, 0) of array

  12. I am having issues w/ commas as well and saw your resolution. The csv file I’m using isn’t clean data and there are commas and line breaks within the data. Is your resolution for the comma issue with replacing ‘,’ commas w/ something else ‘###’, being done outside of power automate? I would like to automate everything but it looks like w/o regular expressions, getting the commas out of the csv data isn’t possible w/ flow.

  13. Pieter, thanks for this tutorial, it really solves the issue in at least 5 less steps then others 🙂

    However, I am now facing a problem that resulting data from parsing has replaced all the Unicode characters (accented letters) from CSV with “�”. Any suggestions?

  14. I know I am able to do it, but I need them to stay in original. Those characters are necessary in my language, so if five different of them are always replaced with that single symbol, the output data is of no use for me 🙁

  15. My bad, Pieter… CSV is generated from some DOS application that doesn’t save the encoding info with the file. Sorry for the confusion and keep up the good work of helping the Power Automate community.

  16. Hello,

    I seem to be struggling with this. I get this error: Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘14697’: ‘The template language function ‘split’ expects its second parameter to be of type string. The provided value is of type ‘Object’. Please see https://aka.ms/logicexpressions#split for usage details.’.

    also where do you get the item{/} to add in the Filter array? I only have Outputs as an option.

    I was getting the Newline error but I added a Compose above the filter array. Was that correct.

    Thanks,
    Craig

    1. Hi Craig,

      That error means that there is something wrong within the Filter Array action. Where you are using the split function the split isn’t generating an array as the split function isn’t given a second parameter that looks like this: ‘,’

      What is the second parameter in your split function set to?

      Potentially you could add a compose action before the fitler array action that just contains that split function. It will make the error messages less cluttered.

  17. Thank you Pieter. I continue to be awed by your clever workarounds and this general approach worked great for me, once I understood your logic. Please keep on posting.

  18. Hi Pieter,

    Great guide, thanks for this. But I am having some problems. My CSV entries contain special characters:
    – I have URLs, for example using ‘:’ ‘/’ ‘.’ ‘_’
    – Timestamps using ‘-‘ ‘:’
    – And money values values using ‘,’ so how would I handle these when parsed into JSON so I can keep them on the otherside?

    What are the ways around this?

    Also, separately, my Filter Array fails with the following error:
    “Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘27756’: ‘The template language function ‘json’ expects its parameter to be a string or an XML. The provided value is of type ‘Array’.”

    Your JSON references output(‘Newline’), is there a predefined variable I am missing?

  19. Hi Pieter,
    I have been trying with the CSV read. When I read a CSV of 500 lines the code works smoothly. However when I increase number of lines to 1,000, I get the error message: “InvalidTemplate. Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘6302’: ‘The template language function ‘uriComponent’ was invoked with invalid parameters. The parameter at index ‘0’ cannot be converted to URI component.’.” Not sure what setting I need to change to increase the number of lines that the flow can read?

  20. Hi Pieter,

    I tried the flow above and it worked nice for files of 500 lines or less. WHen I tried it with 1000 lines, I get the error:

    InvalidTemplate. Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘6302’: ‘The template language function ‘uriComponent’ was invoked with invalid parameters. The parameter at index ‘0’ cannot be converted to URI component.’.”

    Any ideas how I can use the logic for CSV files of large size?

  21. One of the CSVs is 389K lines and 10 columns. However I haven’t even gotten to use that one. Only thing I did was duplicating the lines for the 500 rows to 1000 and all of a sudden the same file didn’t work anymore. When I would remove all the extra lines, it worked again

  22. Hello,
    I’m not at an advanced level for this. So please reply with simple detail.
    We download the meeting attendance lists from Teams during the meeting. It produces a file called “meetingAttendanceList.csv”

    However, this is the actual format of my excel csv file.

    Full Name User Action Timestamp
    “Binkley, Daniel” Joined “1/27/2021, 9:58:18 AM”
    “Ostergaard, Kristina” Joined before “1/27/2021, 9:58:18 AM”

    I have the following setup:
    1. Get file content
    2. Initialize Variable “Newline”
    3. Filter array

    question 1:
    anytime I use the @ in the expression, I always get this error: “The expression is invalid.”
    so I have to input not(equals(item(), ”)) for the filter array. Is this still going to work properly?

    question 2:
    here is my output from file content:
    {
    “$content-type”: “application/octet-stream”,
    “$content”: “//5GAHUAbABsACAATgBhAG0AZQAJAFUAcwBlAHIAIABBAGMAdABpAG8AbgAJAFQAaQBtAGUAcwB0AGEAbQBwAA0ACgAiAEIAaQBuAGsAbABlAHkALAAgAEQAYQBuAGkAZQBsACIACQBKAG8AaQBuAGUAZAAJACIAMQAvADIANwAvADIAMAAyADEALAAgADkAOgA1ADgAOgAxADgAIABBAE0AIgANAAoAIgBPAHMAdABlAHIAZwBhAGEAcgBkACwAIABLAHIAaQBzAHQAaQBuAGEAIgAJAEoAbwBpAG4AZQBkACAAYgBlAGYAbwByAGUACQAiADEALwAyADcALwAyADAAMgAxACwAIAA5ADoANQA4ADoAMQA4ACAAQQBNACIADQAKAA==”
    }

    I copied your code exactly for the Filter array from.

    I get this error:
    InvalidTemplate. Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘11374’: ‘The template language function ‘split’ expects its second parameter to be of type string. The provided value is of type ‘Null’. Please see https://aka.ms/logicexpressions#split for usage details.’.

    If I remove the “replace comma with semicolon”, I get this error:
    InvalidTemplate. Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘11373’: ‘The template language function ‘base64ToString’ expects its parameter to be a string. The provided value is of type ‘Object’. Please see https://aka.ms/logicexpressions#base64ToString for usage details.’.

    I’m completely frustrated. Please help.

    Thanks,
    Kristina

    1. Hi Kristina,

      The problem with the content is that it is in base64 format. You can convert this to text using the base64tostring function available in the expression editor.

      If you need any help feel free to hit the chat on this page.

  23. I thought that is what this code was doing?

    json(
    uriComponentToString(
    replace(
    replace(
    uriComponent(
    split(
    replace(
    base64ToString(
    body(‘Get_file_content’)?[‘$content’]
    ),
    ‘,’,’;’),
    outputs(‘Newline’)
    )
    ),
    ‘%5Cr’,
    ”),
    ‘%EF%BB%BF’,
    ”)
    )
    )

    1. Yes it is. However it looks like the base64 conversion might be failing. Can you create a compose action and just add the base64tostring( … ) part in there as an expression?

  24. When I use this I get the below error:

    base64ToString(
    body(‘Get_file_content’)?[‘$content’]
    )

    The ‘from’ property value in the ‘query’ action inputs is of type ‘String’. The value must be an array.

  25. Hey Pieter, thanks for this. I’ve been using this flow for a few months and just received an error. It was the …”cannot be evalutated because array index 4 is outside of bounds (0,3) of array.”

    I looked through the filter array output (by adding a compose operation) and I see that one row is missing the second column, so I’m guessing that is causing the error. Any ideas on how to prevent this from failing?

    1. Hi Tim,

      You could use conditions to handle these kind of problems. In apply to each action you could use a condition step. In Select actions you could use an if function. in both cases check if the value is empty and then return and empty string.

  26. Hi,

    This is great and exactly what i’m looking for. But do you know a way to remove the empty line from the bottom of the CSV file in the same process?

    1. In general I just make sure that the flows test for empty lines and then ignore those as that will also handle empty lines or malformed lines in the middle of my data

  27. Hi am facing this error, can you plz tell what’s wrong

    Unable to process template language expressions in action ‘Filter_array’ inputs at line ‘1’ and column ‘6186’: ‘The template language expression ‘json( uriComponentToString( replace( replace( uriComponent( split( replace( base64ToString( body(‘Get_file_content’)?[‘$content’] ), ‘,’,’;’), outputs(‘Newline’) ) ), ‘%5Cr’, ”), ‘%EF%BB%BF’, ”) ) )’ cannot be evaluated because property ‘$content’ cannot be selected. Property selection is not supported on values of type ‘String’. Please see https://aka.ms/logicexpressions for usage details.’.
