Agents flows and error handling

Following my earlier post about creating an agent flow. I’m now writing about error handling in Agent Flows. How do we handle basic failures within agent flows?

An example error

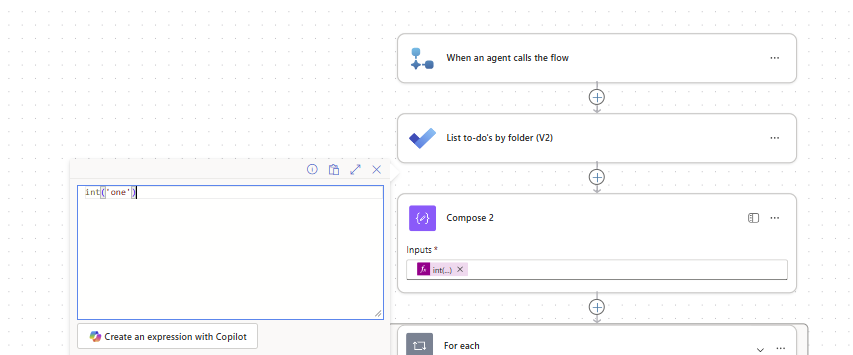

First of all I created a flow that will generate an error. The following flow will of course fail.

Now we have multiple types of error that an agent flow may generate.

• Coding mistakes
• Unexpected failures

For Coding mistakes like shown above we don’t want any real error handling be put in place as we need to fix this. These kinds of errors should not ever get to a production system.

When however we get to issue where for example an action fails because of a timeout or unavailable API then a retry or an email reporting the error may be useful. Like with cloud flows we could implement a try-catch pattern.

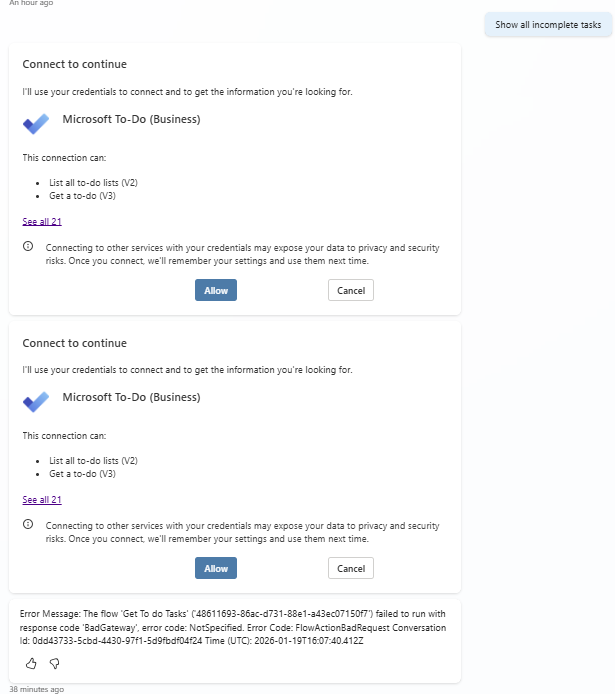

Before we look at how to handle the errors, I want to have a look at how the agent behaves. When the failure occurs we’re twice asked to Allow a connection to Microsoft To-Do.

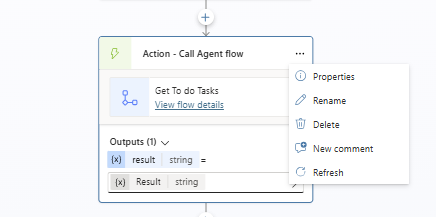

When we look at the action calling the Agent flow then there is no setting for retries. However the flow is definitely called twice, when things go wrong.

How can we sort this behaviour out? If we compare this to calling a child flow in Power Automate cloud flows then we can adjust the retry policy.

Implement Error Handling in Agent Flows

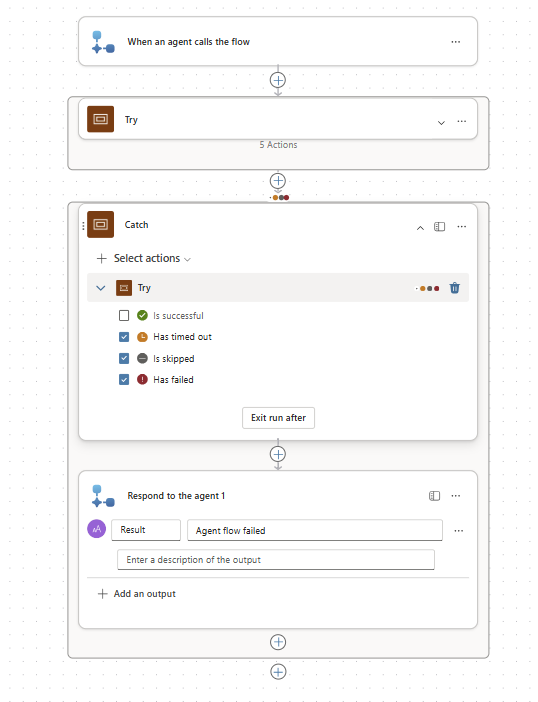

Similar to the cloud flow we could implement the try catch pattern.

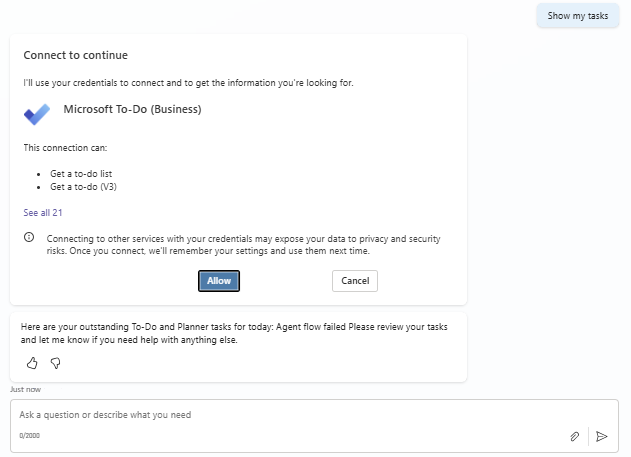

If we now test our Agent flow again we will find that the retry doesn’t happen. Why not? Well that is simple.

The calling of the Agent flow retries only when we have an agent flow not returning a response. In our case we are telling the agent to respond with a failure message. This way the user gets informed about the issue. Therefore technically the flow doesn’t fail anymore.

The message that is returned to the user needs to be handled in a slightly better way of course. But that is just a small detail now.
