Commas in CSV files in Power Automate

In the last week I’ve been asked 3 times how to handle commas in csv files.

Reading CSV files

A while back I wrote a post about how to read CSV Files in Power Automate. Although this post handles some of the issues around reading CSV, It didn’t cover handling commas your csv.

Example CSV

In this post I will use the following example CSV

An annoying comma in a csv file.
Name,Description,Amount
First item,This is the test of the first item,1
Second Item,"The second, and last item",2

So I’ve got one header line. Then I’ve got a simple line with some data followed by a more complicated line where my description contains a comma.

Note that the csv will have a double quote around the data with a comma. If only every field could have double quotes around all data then that would be great.

In my case i want to replace the commas that separate the fields with 3 hashes (###). But I don’t want to replace the comma in my data.

Creating a flow

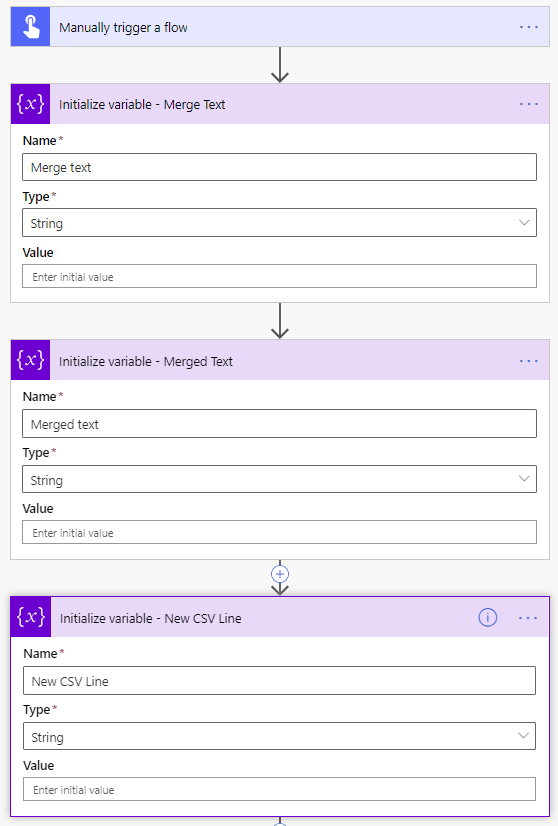

As so often I’m going to create a manually started flow. in this flow I will initialize 3 variables. In general I try to avoid variables as much as possible and use compose steps instead, but there will be too loops and conditions for that to work this time.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 8

With these 3 variables I will control the manipulation of the csv file.

Reading the CSV data

Now I’ve got 3 steps to get my CSV data and turning it into an array of lines.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 9

For the CSV content compose action i’m using the following expression:

base64ToString(
                body('Get_file_content')?['$content']
              )

for the CSV Lines split, I’m using the following expression to split by the new lines.

split(outputs('CSV_content'),'
')

Note that I added a new line in the middle of my expression!

When I run this flow I’ve now got the following array of CSV lines.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 10

Constructing new CSV lines

In the next step I will process the CSV lines in an Apply to each step. this Apply to each will take the output from the earlier CSV Lines compose action and take it as its input.

Then for each line we want to split the data.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 12

The expression used to split the fields is

split(items('Apply_to_each'),',')

All quite simple so far. But what does the result look like? Especially that second item in our CSV will now not look right.

[
  "Second Item",
  "\"The second",
  " and last item\"",
  "2"
]

there are a couple of different approaches, but in my approach in this post I will go for standard flow options available. I could have called and Azure Function to do all the work, but I want to stick to standard Power Automate actions today.

The general process is shown below.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 11

The New CSV line is set to an empty value using the concat function ( concat(”) will do this).

Then Inside the Apply to each 2 will will set the New CSV line to the required ### separated text like this:

Second Item,"The second, and last item",2

Then we will use a compose action to get each of the lines. So that we can use the Pieter’s method to merge all of the lines.

Inside the Apply to each 2

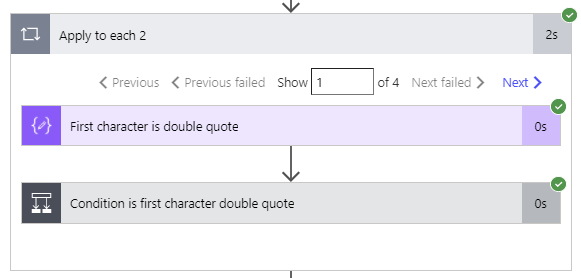

Inside the Apply to each 2 we will need to check if a field of data starsts with a double quote (“). If it does then we have found data that has commas and my csv editor (e.g. Excel) decided that the double quotes were needed.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 13

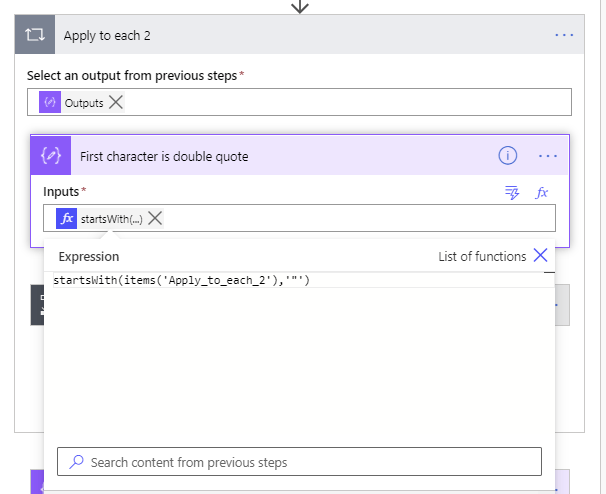

First I created a compose action which gets the first character

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 14

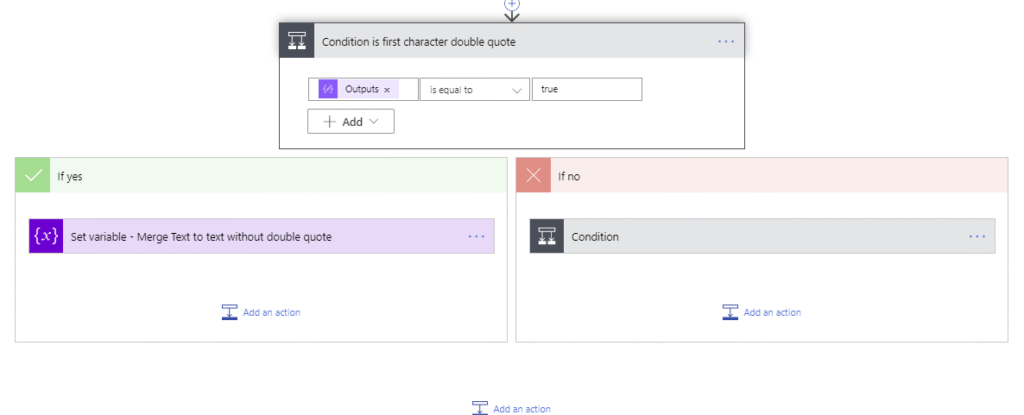

We can now use this in a condition step. when the data starts with a double quote we will simply store the text in the merge Text variable. Nothing to complicated.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 15

If we find data without a double quote then there are two options. Either we have found data to merge before or we haven’t.

If we have found a field starting with a quotes before then we set the merged text variable to merge the values found. If we haven’t found quotes before then we simply set the merged text to the value of the field.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 16

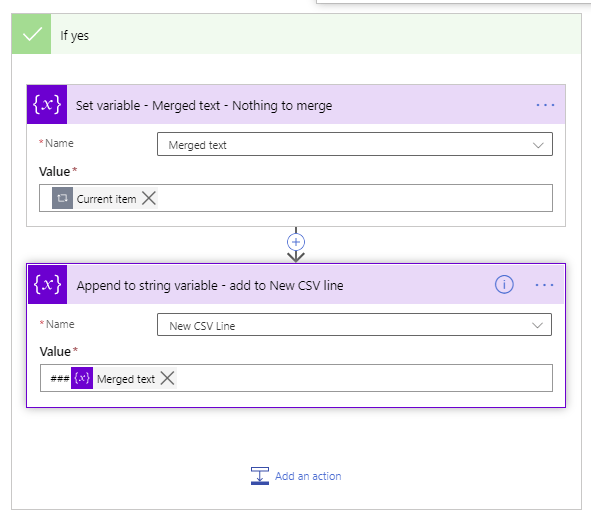

The code for the nothing to merge is as follows:

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 17

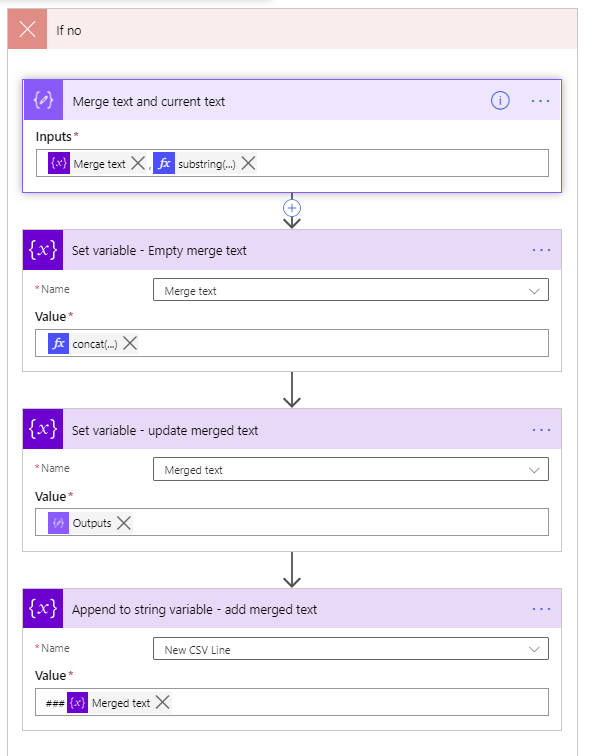

When I need to merge two texts together I use the following 4 steps:

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 18

So now we have a New CSV Line that looks like the has separated lines that I mentioned before.

The only thing left to do is now to set the compose with the content of the variable so t that a second compose can collect all the lines.

Handle commas in CSV files in Power Automate Microsoft Office 365, Microsoft Power Automate image 19

This final Compose will now hold the following data:

Commas in a CSV file with hashes

This solves my problem.

I could still remove the initial 3 hashes, but that would clutter the post rather than anything else. They aren’t sitting in my way for now.

Other Power Automate posts?

Have a look at the Power Automate User Guide with many other posts.

By Pieter Veenstra

Business Applications and Office Apps & Services Microsoft MVP working as a Microsoft Productivity Principal Consultant at HybrIT Services. You can contact me using contact@veenstra.me.uk.

19 thoughts on “Handle commas in CSV files in Power Automate”
  1. you don’t show the expression for the sub string you use to merge the two texts together. Can you please show

  2. I too am a little confused, specifically at the formula being used for the second item in “merge text with current text”, if you’re using a substring formula don’t you have to define start position and character length? doesn’t this change with the data? wouldn’t it be better to just use current item? Can you show that specific formula?

    1. Hi Brett,

      The substring expression is as follows:

      substring(items(‘Apply_to_each_2’),0, sub(length(items(‘Apply_to_each_2’)),1))

      So even though the content length may change with the length function it is possible to calculate the length of the specific text.

  3. Pieter, Thanks for the quick reply, I have a suggestion that probably would take more expertise than I have. I noticed that your solution is good if were dealing with a cell with only a single comma in the .CSV. What about something that can deal with multiple commas in a single cell, like “1,000,000” for instance, or multiple sentences containing commas. I changed the delimiter to a pipe for testing purposes.

    Input- This is a Test, This is, a Test.
    output – |\”This is a Test, This is| a Test.\”|

    The startsWith condition could remain, but some where we would need to do an endsWith, then merge everything in between, I assume. (haven’t figured this part out yet)

    This might create something that is very slow to run. I have no idea why Microsoft does not support CSV processing with the Excel connector. It would save a ton of hassle.

  4. Hi Pieter. First of all, thanks for all of your posts and especially this one. I have looked around for a way to do this for the last few days and finally found your post.

    Could you please share the actual expressions in the last 2 steps, namely the “Compose New CSV Line” and the “New CSV”? I know you mention that Compose New CSV Line is just setting it to the content of the variable and that the New CSV step is using the Pieter, but the expression:

    Body(‘Compose New CSV Line’)

    is throwing an error and I cannot reference the Apply to Each content.

    Can you help? Thanks in advance.

      1. Thanks! That seems to work. I, however just ran into the For Each limit of 5000. 🙁

        My CSV file has ~24K lines * 15 items each results in > 360K items to process in Apply to each.

        Any recommendations would be welcome.

        I guess I need to create some kind of a “batching” sequence.

        Thanks again for your quick response.

      2. The general idea is to avoid for each all together. They are slow and difficult to debug.

        What are you doing inside the for each?

        Quite often a select action can be an alternative if you just massage data.

      3. I am processing a CSV file which has commas in some of the fields (exactly like the article describes…copied step by step). The issue is the size of the source file. After your steps then I am parsing (JSON) it.

  5. It took me awhile, but the concept works and was the only real solution I could find to replace commas inside quotes from CSV files when you have no control over the separators. The key is the 2nd for each and I replaced the quotes with *# on the left and #* on the split the row. Then follow his process for the 2nd for each to pull change and re-assemble the row. Later in the JSON array if you do that, you can set a variable with the field you updated to bring back the commas. Took me a week to get it right, but once done it’s easy to reproduce

  6. Hello,

    I just developed a way to change the comma delimiter column separators in CSV file data.

    It only changes the commas used as separators if the file is set up with quotes only around the columns with commas.
    It doesn’t use any Apply to each and it accomplishes everything in seconds in a few actions, even for large CSV files.

    https://powerusers.microsoft.com/t5/Power-Automate-Cookbook/Change-CSV-File-Data-Delimiter/td-p/1442954

    Once only the column separators are changed, then it’s easy to parse the entire file in a single Select action.

  7. I had a CSV with a value that ended with a space. This ended up ad value,”value “,value,value. To make sure to skip this value I tried this:

    and(startsWith(items(‘Apply_to_each_2’),'”‘),not(endsWith(items(‘Apply_to_each_2’),'”‘))

  8. Hi,
    I have a question: Is it possible to remove comma from a number value and convert that decimal number to whole number in power automate platform. For example: I want to convert 1,27.89 to 128. Here I want to remove comma after 1,2XXX and covert the decimal number 127.89 to 128. Please help

    1. Hi Saurav,

      That format odd 1,27.89 is a bit weird. Which country uses this standard? I standard of 1,276.89 is more common where the comma is separating the thousands.

  9. Hello, please could you provide the expression of concat function in the first step and el second one , Thank youuu

  10. Hi, do you have a video/package somewhere.. i was not able to follow what is the value of apply_to_each_2 input?
