Office 365 – SharePoint – Create a Client Side Web Part using SPFx and CDN

Avatar for Pieter Veenstra

ByPieter Veenstra

May 9, 2017

Recently Microsoft have released the new Client Side Web Part technology with the new SharePoint Framework (AKA SPFx).

In this article I’m going through the steps on

  • How to create a Client Side Web Part
  • How to create a CDN in Azure
  • How to add the Client Side Web Part to your new modern pages
  • How to add the Client Side Web Part  to your traditional SharePoint pages.

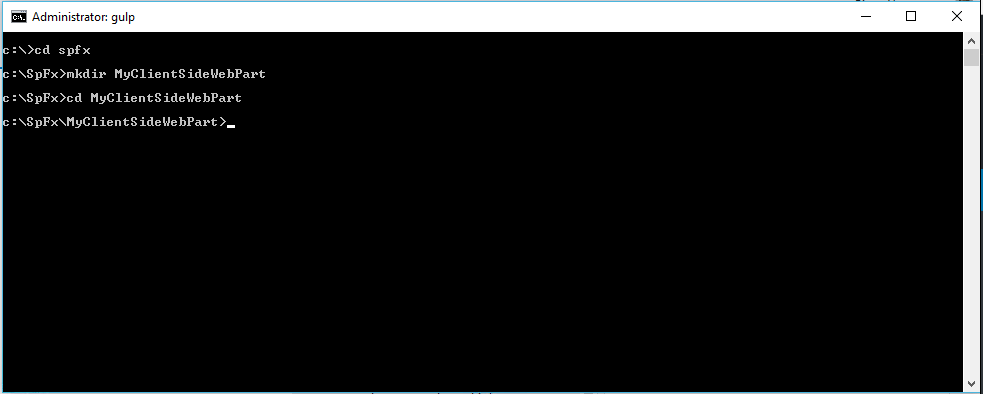

I’m starting with creating a folder on my PC called SPFx

Then I’m adding a folder for my Web Part project “MyClientSideWebPart”

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework cmd1

Create the base project

Now it’s time to pick up the base project structure. This is done using Yeoman. Within the same Command prompt simply type:

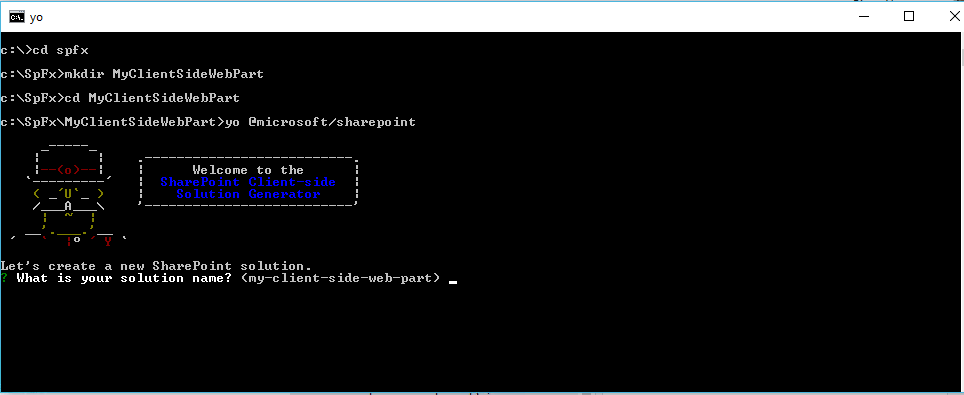

yo @microsoft/sharepoint

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework yo

I’m looking forward to the moment that all of this can be done within Visual Studio. Although you will probably find that by the end of this post that there isn’t a need for the full blown Visual Studio at all. Simply use Visual Studio Coded instead. You can even use Visual Studio code for all your debugging.

Anyway, better continue with the creation of the project. So in the above prompt I’m going to hit return. I’m happy with the suggested project name. Isn’t it magic? Yoeman looks at the parent folder name and suggest a project name.

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework yo2

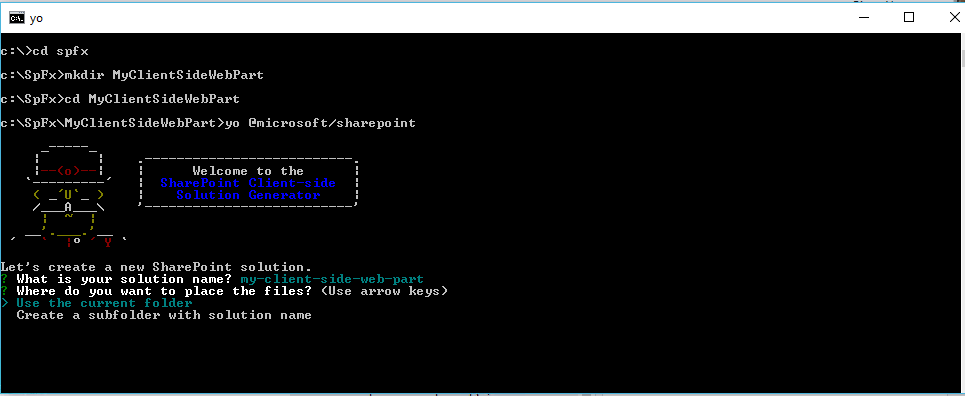

You can create a new folder for the project, however I’m going to stick to the root folder

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework yo3

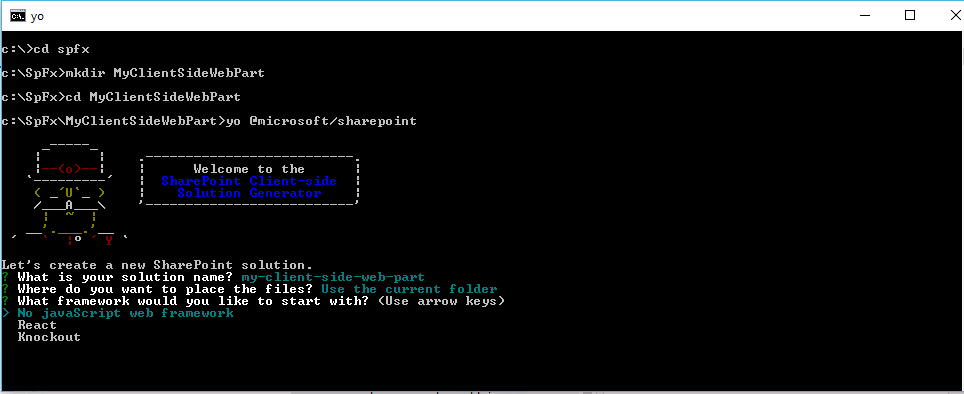

Now there is a choice to make. Do you want to use React, Knockout or neither of these. I’m going for the default No JavaScript web framework.

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework webpartname

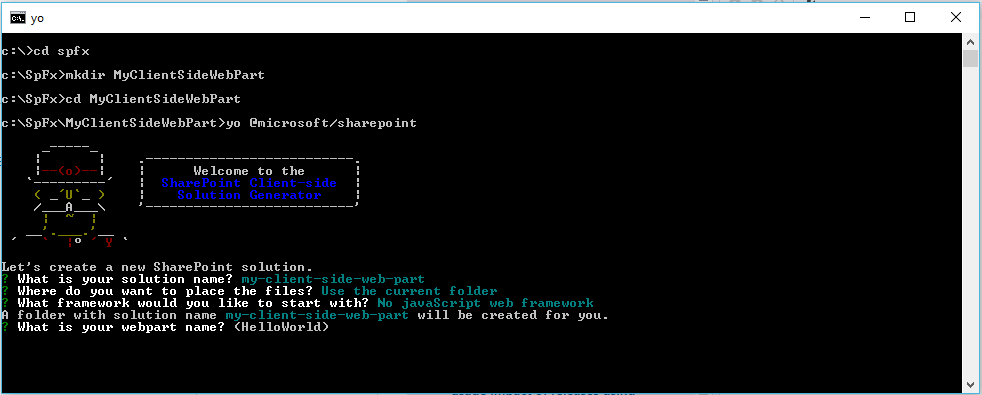

Now I’m asked to supply the web part name. So I type:  MyClientSideWebPart

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework webpartdescription

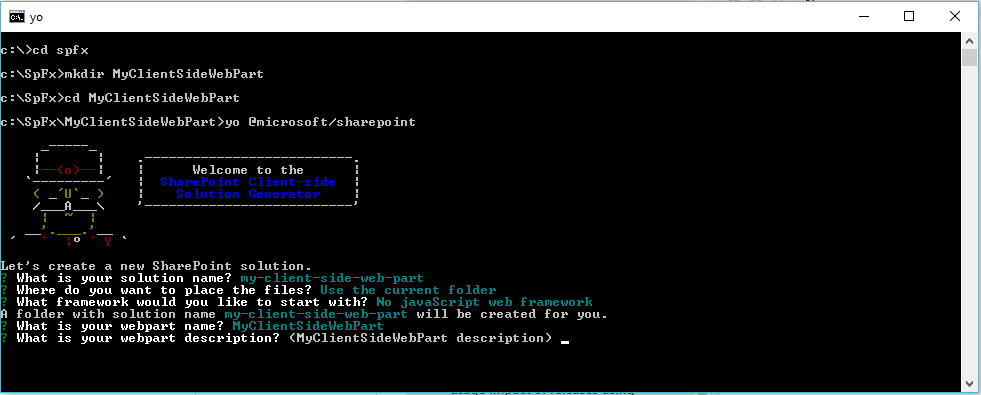

And then the description

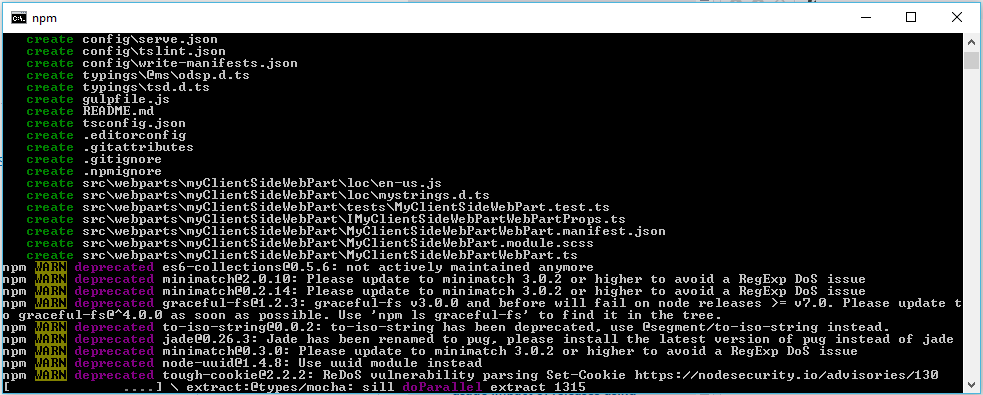

Once I’ve supplied the description the magic is all starting:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework creation

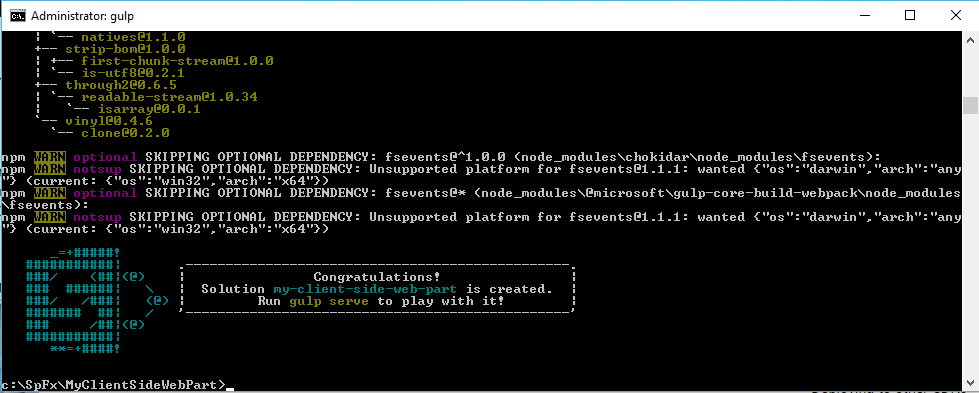

A lot of files are created and a successful message will appear. The many warning messages can be ignored. At least I ignored them and they don’t seem to be reporting any major issues.

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework successful

So what have we got?

As stated in the successful message I now started by running

gulp serv

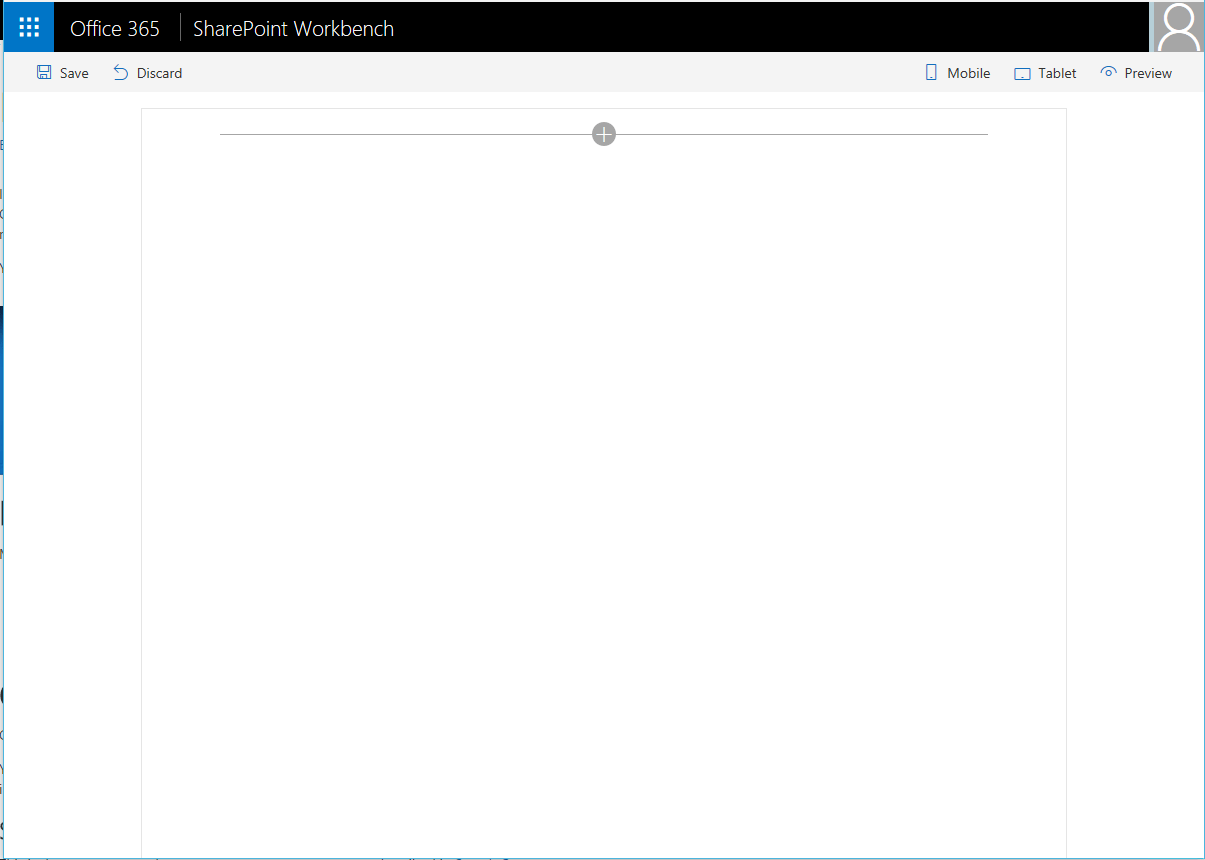

This opens a browser pointing at

https:/ /localhost:4321/temp/workbench.html

Workbench is a page that in this case lives locally on my PC that looks like a modern Office 365 page and lets me add web parts.

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework workbench

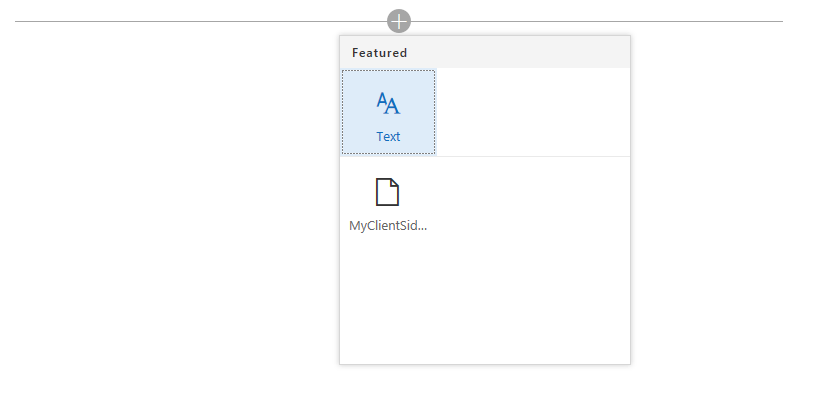

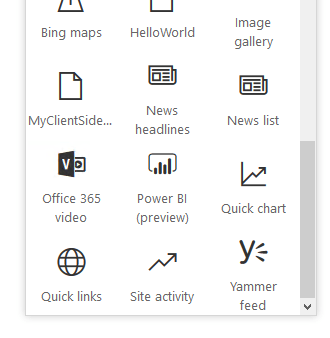

So I click on the plus sign to add a web part and select my MyClientSid… web part. So in future I might want to think of nice short names for my web parts.

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework addwebpart

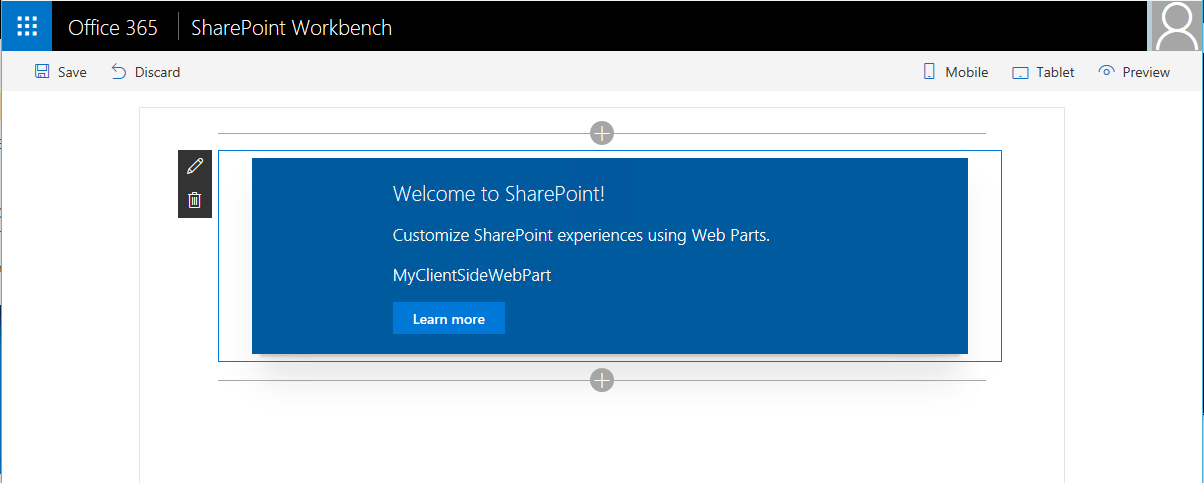

Once the web part is added my page looks like this:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework webpartonpage

Ok, that is nice but I would like to add this web part to a real SharePoint page and I don’t want to run this from https:/ /localhost:4321

Creating the CDN

I’m going to create CDN in Azure.  I must say that I find Azure extremely confusing and it is difficult to find the right options. So I’m going to document all the little steps that are needed here. First I logged on to portal.azure.com

I’m starting by creating a storage account.

I click on the big green +

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework plus copy

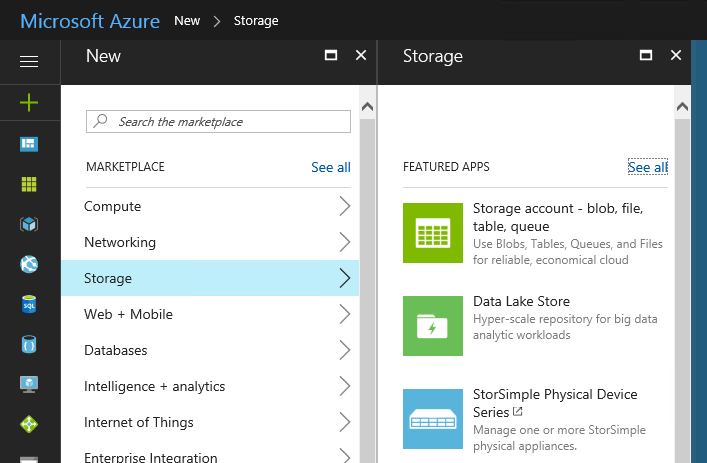

Then in Storage I select Storage account – blob, file , table, queue.

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework storage

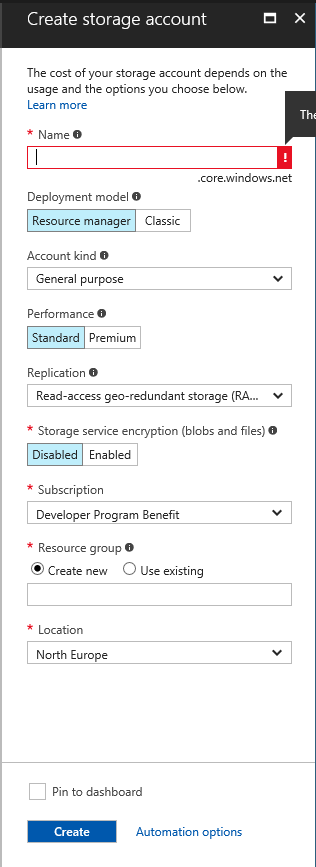

Then I complete the little form that appears. starting with a name. Not that you can only use small letter s here.

So I’m going for Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework storageaccountmyclientsidewebpart, for the rest I’m going to leave everything to the defaults.

Although not absolutely needed I tick the box Pin to Dashboard. It just helps finding things back.

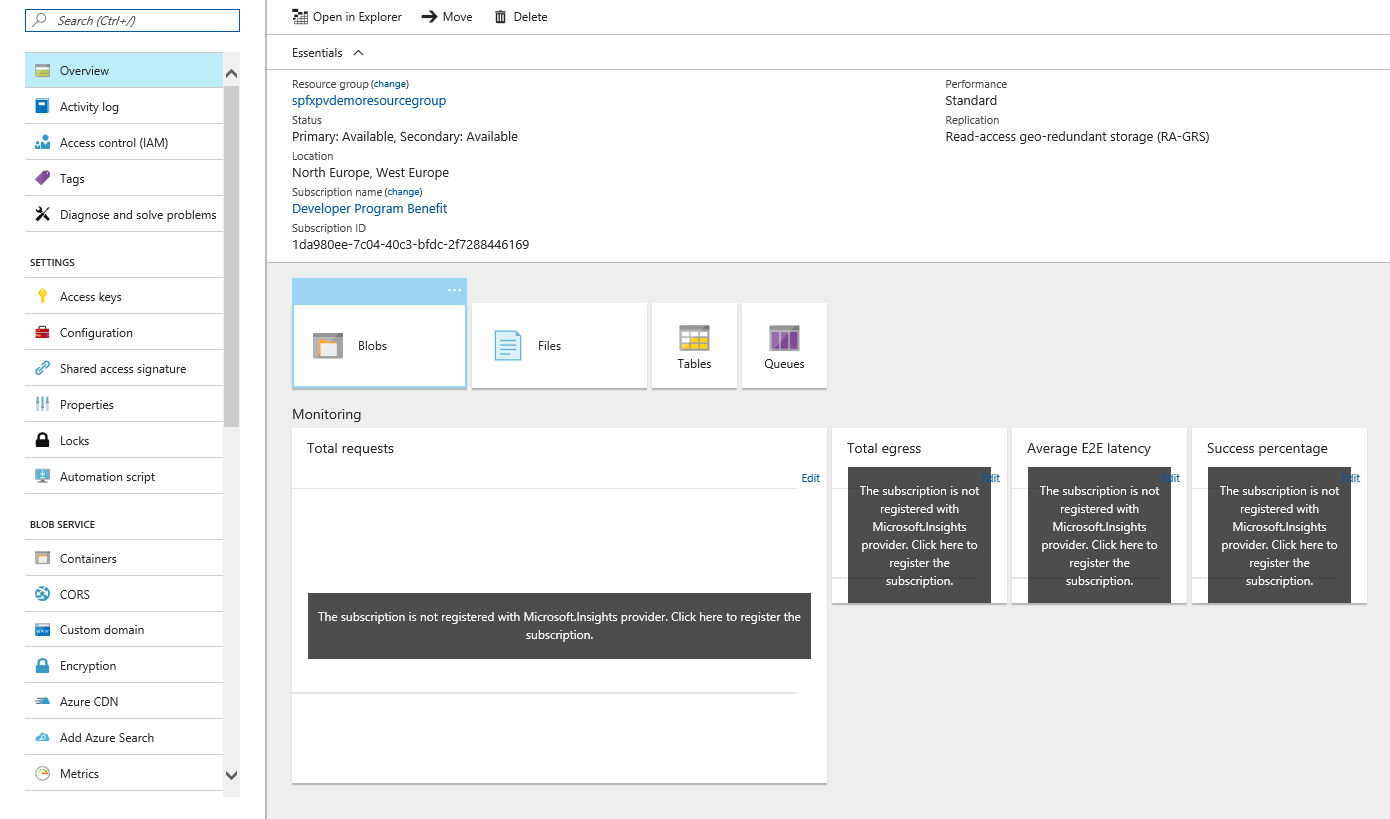

After a while you should get the details of the storage account to appear:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework staorageaccount

The Blobs button (or whatever it is) already seems to be selected. This is the one to click.

Then in the top menu I added a container.

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework addcontainer

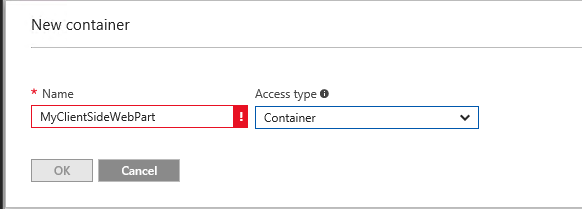

In the form that appears I supply the name and select Container:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework container

Aahhh again, only lowercase characters. So after correcting the above I got the right result. Even thought the container is n’t listed immediately in the overview.

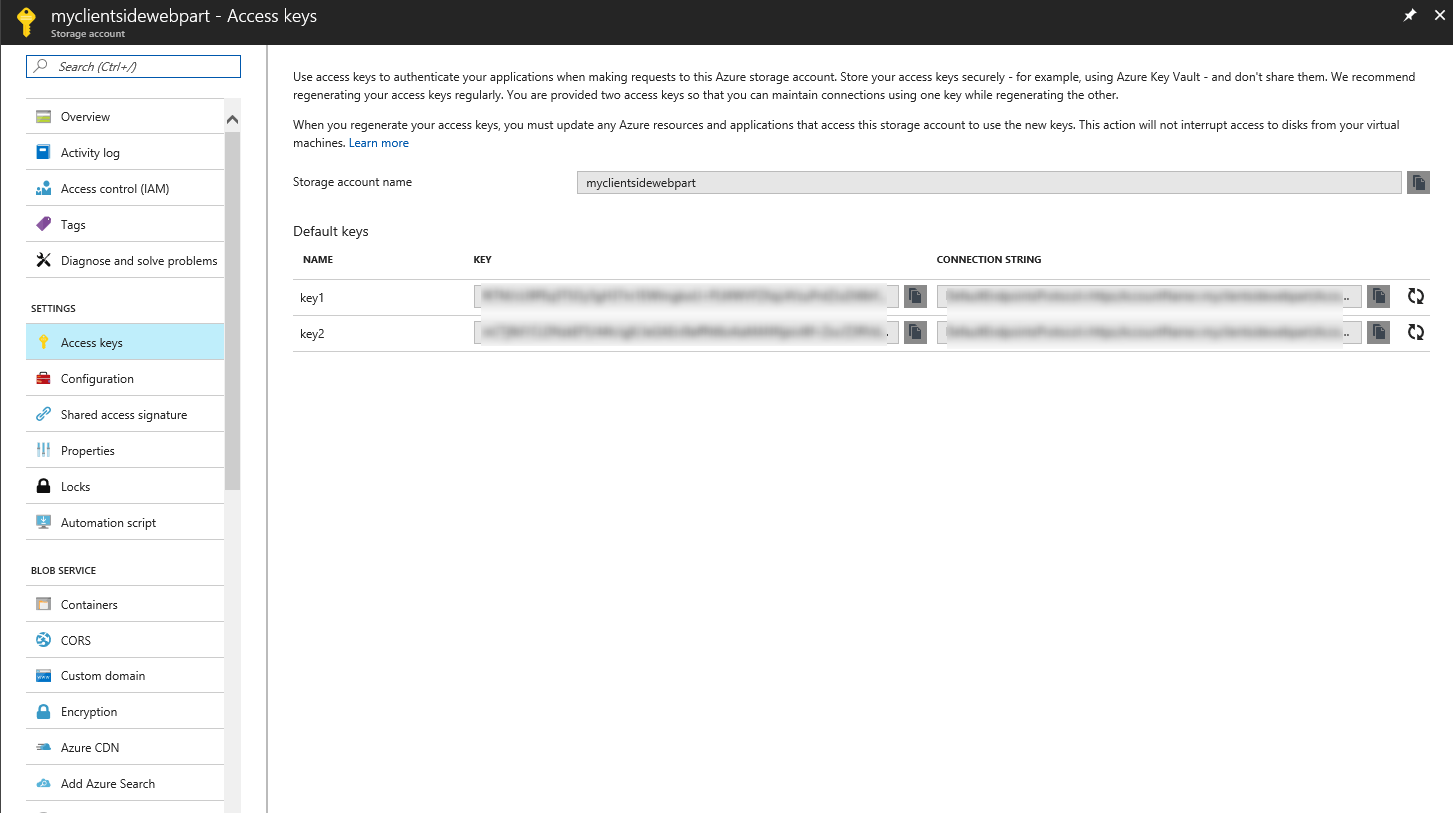

Going back to the Storage account overview, there is an option to get the access keys:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework accesskeys

Simply copy one of these keys as we will need these later.

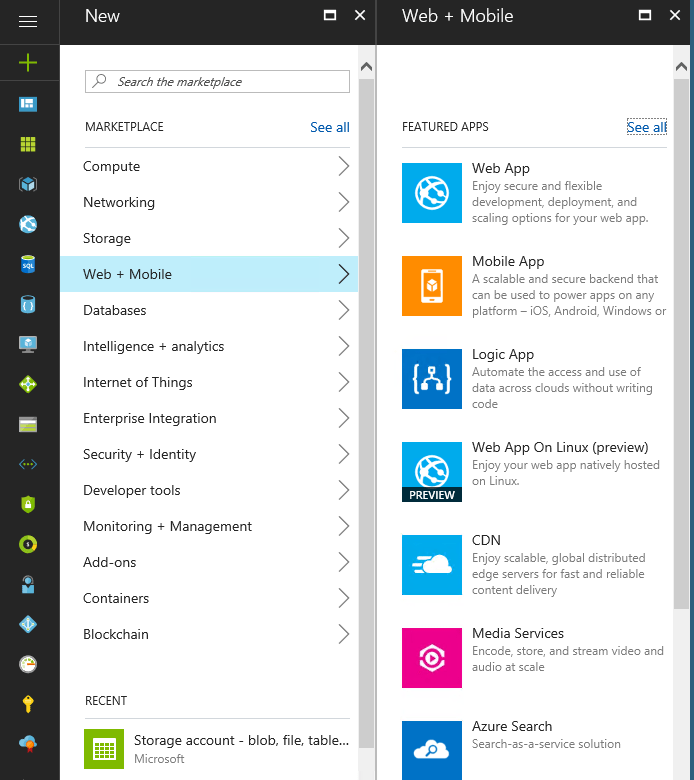

I go back to the big green +. Select Web + Mobile and then click on CDN

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework cdncreate

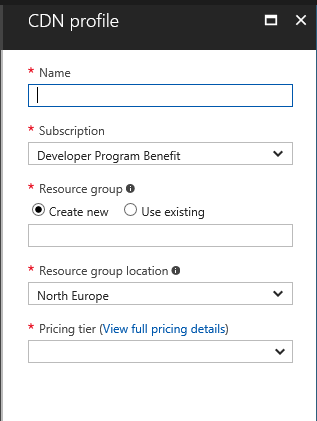

This gives me a small form to fill in:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework cdncreateform

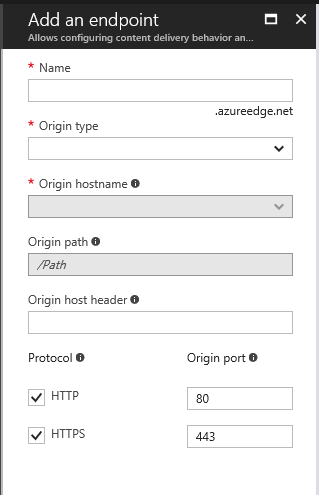

then within my CDN profile I add an endpoint

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework endpoint

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework addanendpoint

for the name I use : myclientsidewebpart



The origin type has to be storage.

and in the Origin host name I’m selecting the myclientsidewebpart.blob.core.windows.net as I supplied earlier in my storage account.



















After a few minutes the end point will be available ( at least in my case it is)

Ok, so now all the Azure work has been done! Now we can go back to our web part code.

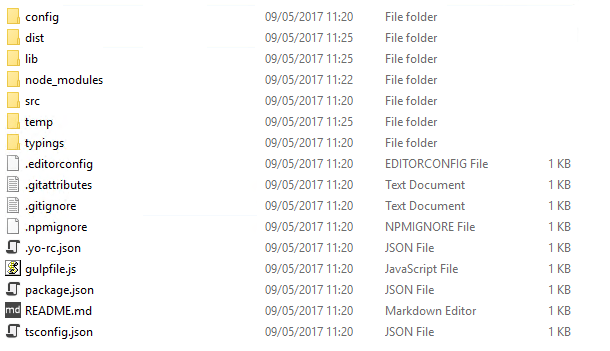

I’ll start by having a quick look at the folder structure that was created by Yeoman earlier:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework folders

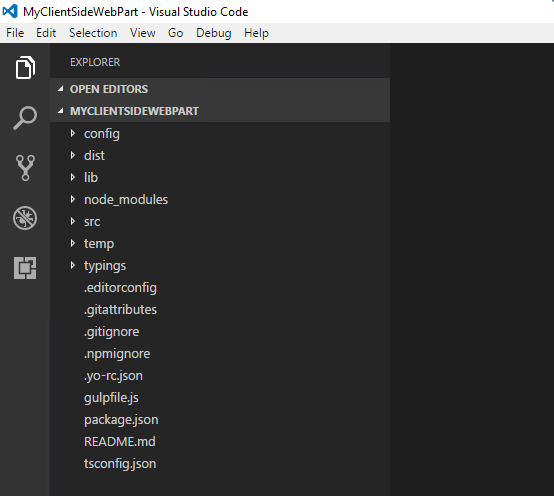

Hmm, no project or solution file. Time to start Visual Studio Code and open the folder:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework vsc

We’re now going to look at a few files in this project starting with the deploy-azure-storage.json

{
“workingDir”: “./temp/deploy/”,
“account”: “<!– STORAGE ACCOUNT NAME –>”,
“container”: “my-client-side-web-part”,
“accessKey”: “<!– ACCESS KEY –>”
}
We now need to add an account and access key. The access key we copied earlier, and the account  is  the storage account name used earlier  so in my case myclientsidewebpart.

Loading the web part from the CDN

Next file in the config folder is write-manifests.json. This file contains the location the the web part.

{
“cdnBasePath”: “<!– PATH TO CDN –>”
}

Now we need to supply the url of the CDN endpoint

https:/ /myclientsidewebpart.azureedge.net/myclientsidewebpart/

Note that the last part of the above url (myclientsidewebpart) is the blob container name.



That’s it! All the Azure configurations within the project are sorted out.



Deploying the web part to Azure

To dpeloy the solution to Azure there are two steps:

  • prepare to ship
  • deploy

Now we have to go back to the Command prompt:

running

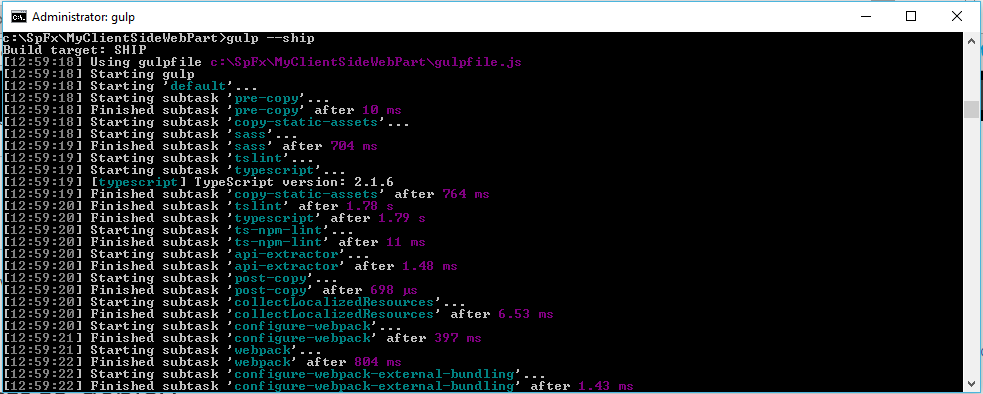

gulp –ship

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework ship

Then

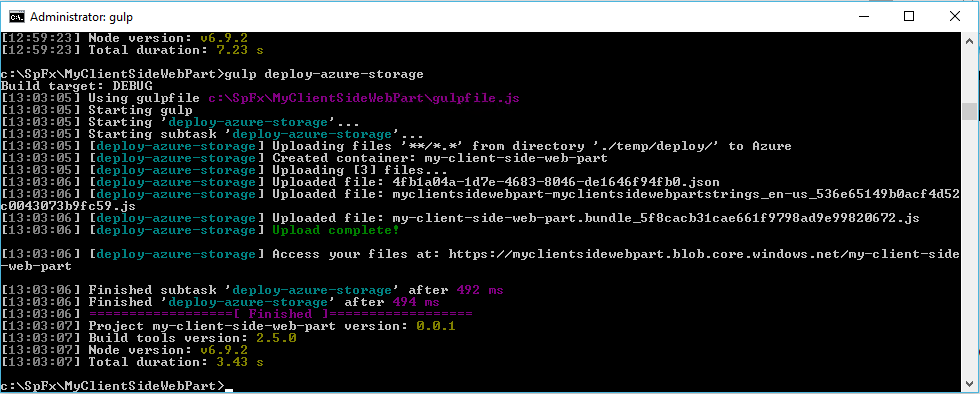

gulp deploy–azure–storage



Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework deploy

So far we have completed all the azure configurations and made the web part available in the CDN.

But, how do we now add the web part to SharePoint?

Like in the olden days, we need to create a package file. This is done using:

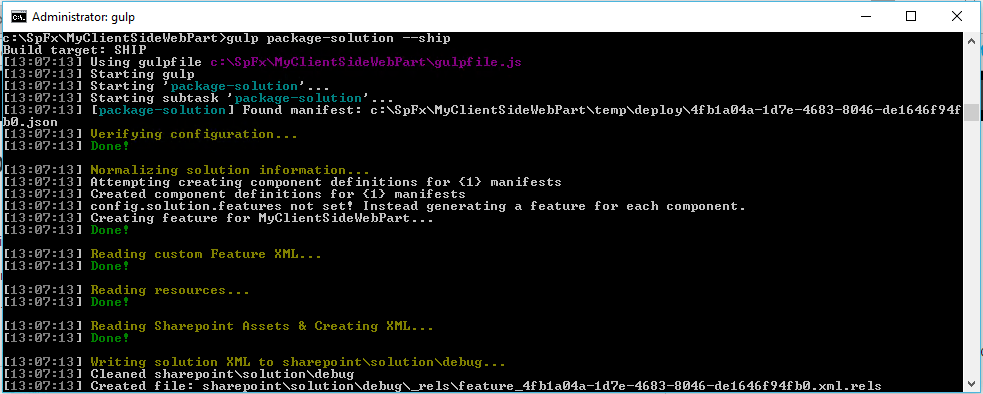

gulp package-solution --ship

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework package

If you want to run the webpart using https:/ /localhost for debugging purposes you can run gulp package-solution  without the –ship option

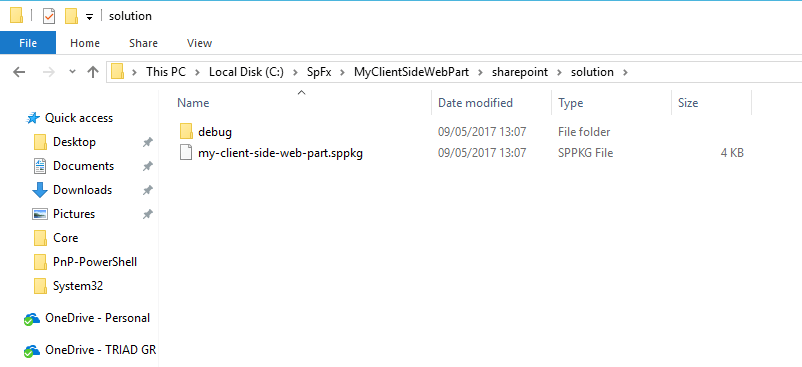

I now have a package file created within my project folder -> sharepoint -> solution

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework packagefile

This is the package file that needs to be added to my SharePoint app catalog:

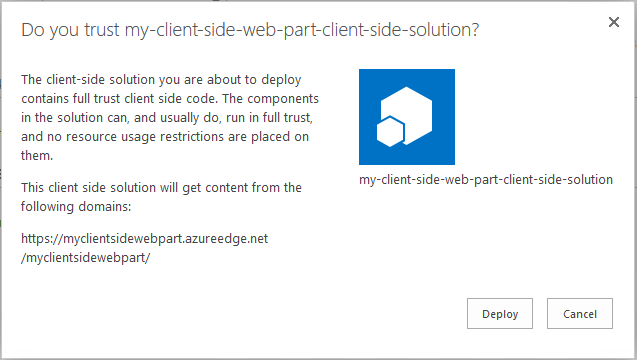

Then I drag this into the store and accept the trust:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework trust



Ok, so now SharePoint knows about my web part.

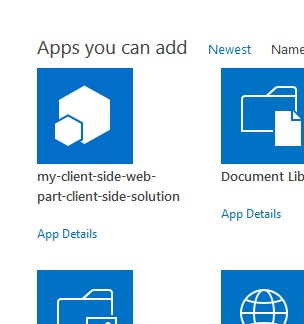

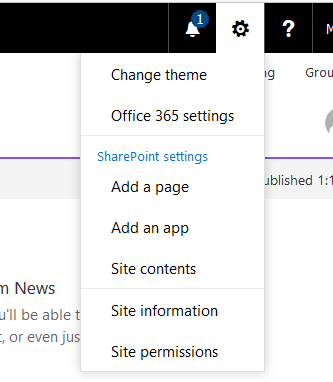

Time to visit my SharePoint site and add the web part to the page. Starting by adding the app to my site:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework addanappOffice 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework appsyoucanadd

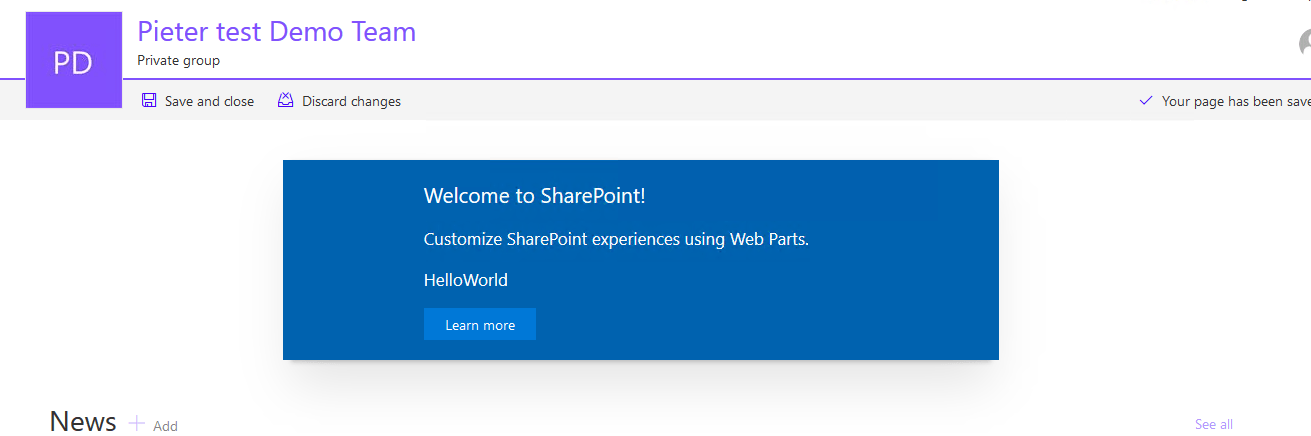

And the web part can be added to the web part page:

Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework clientsideaddwebpart





Office 365 - SharePoint - Create a Client Side Web Part using SPFx and CDN Microsoft Office 365, Microsoft SharePoint, SPFx or SharePoint Framework webpartonpagemodern
