I will start today with a series of posts with practical examples of how to migrate to Power Automate.

Migrate to Power Automate from SharePoint Designer practical examples - part 1 - Clone list items Microsoft Flow, Microsoft Office 365, SharePoint Designer flow

Migrate to Power Automate example

I’m going to start with an easy workflow, but I’m planning to attack more complicated workflows in the following examples.

So my example in SharePoint designer will run when list items in SharePoint are changed. More specifically I will clone the list item when the column test column is set to clone.

So my workflow will trigger when the item is created or modified. Then all the fields are copied to a new list item making sure that we don’t copy the test column value as that would trigger more processes to start. Maybe this would be a nice test, but this time I’m not going to push the system too hard.

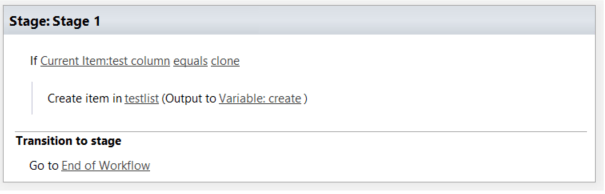

Within SharePoint Designer my workflow now looks like this:

Migrate to Microsoft Flow example

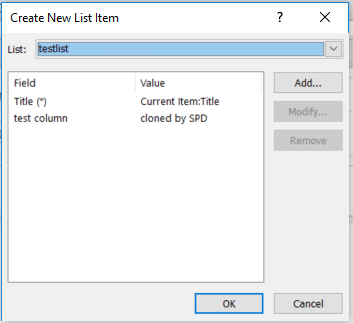

The Create new item copies all the column values. For the test column I’m going to set the value to “cloned by SPD”

Migrate to Power Automate from SharePoint Designer practical examples - part 1 - Clone list items Microsoft Flow, Microsoft Office 365, SharePoint Designer createnewitem

Now it is time to replicate the same within Microsoft Flow.

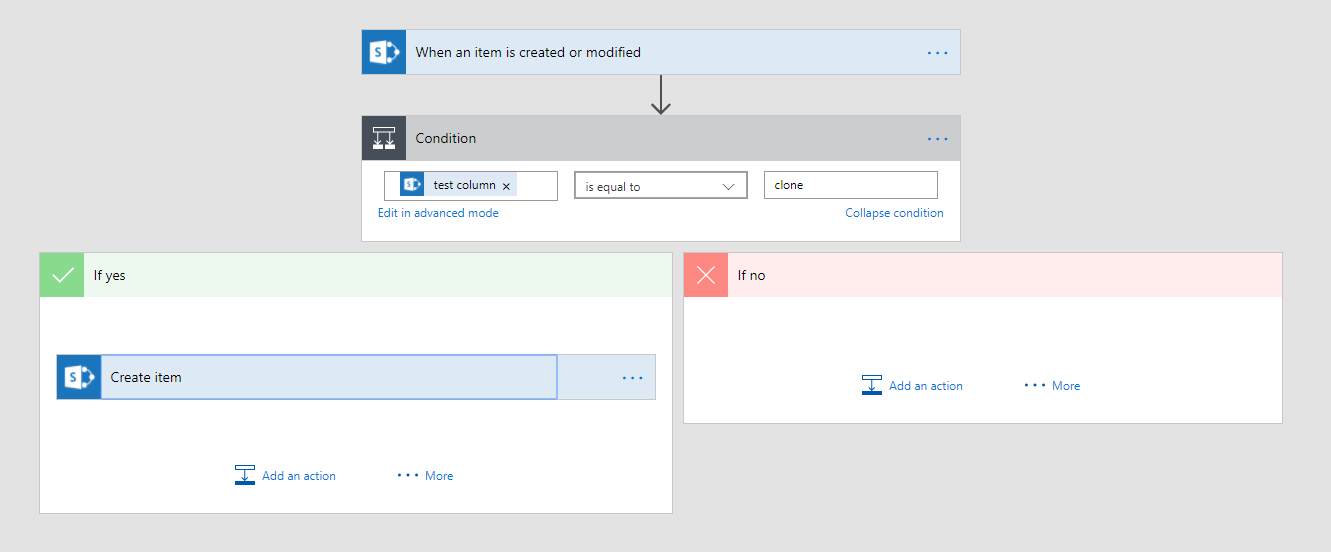

Within no time I’ve build the following Flow:

Migrate to Power Automate

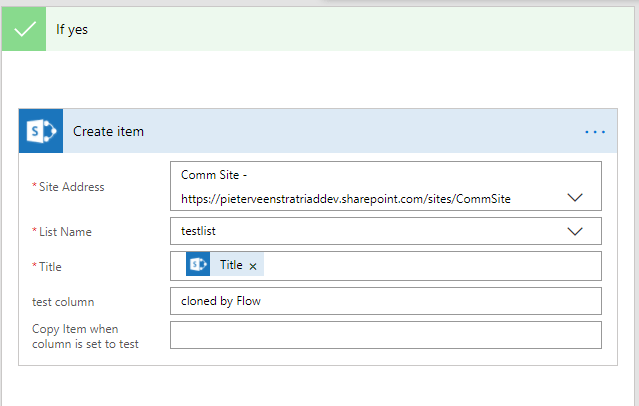

Creating the item is a easy as well. Simply select the site, list and values for all of the columns and all is done:

Migrate to Power Automate from SharePoint Designer practical examples - part 1 - Clone list items Microsoft Flow, Microsoft Office 365, SharePoint Designer createitemflow

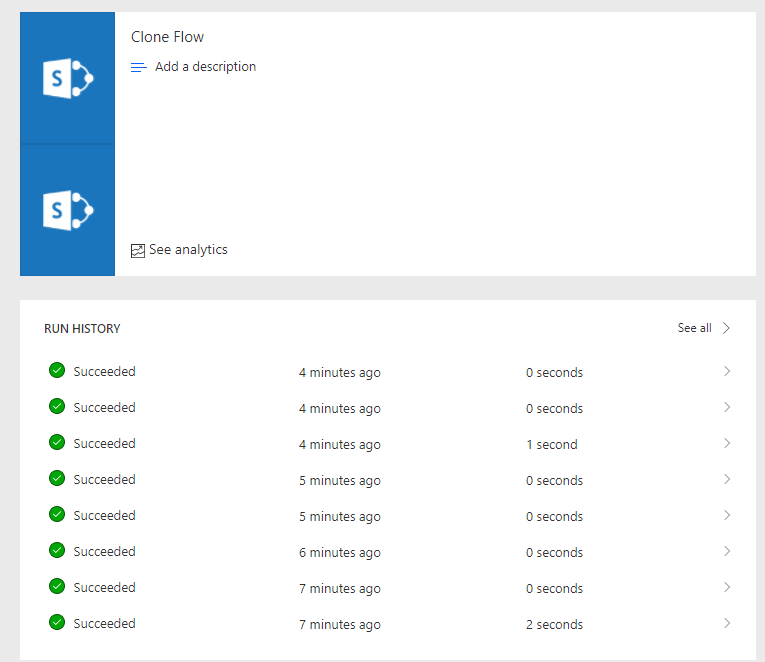

This is where you can see the big difference between Flow and Workflows. As i ran the SPD workflow, I can now see my status column for the workflow that was added to the list. Flow doesn’t add a column. If you want to know if your flows were successful  you will have to go to the run history in Flow.

Migrate to Power Automate from SharePoint Designer practical examples - part 1 - Clone list items Microsoft Flow, Microsoft Office 365, SharePoint Designer cloneflowhistory

This shows the separation that Workflow Manager 1.0 was supposed to bring is now really happening with Microsoft Flow. So no need for workflow history lists in SharePoint anymore.

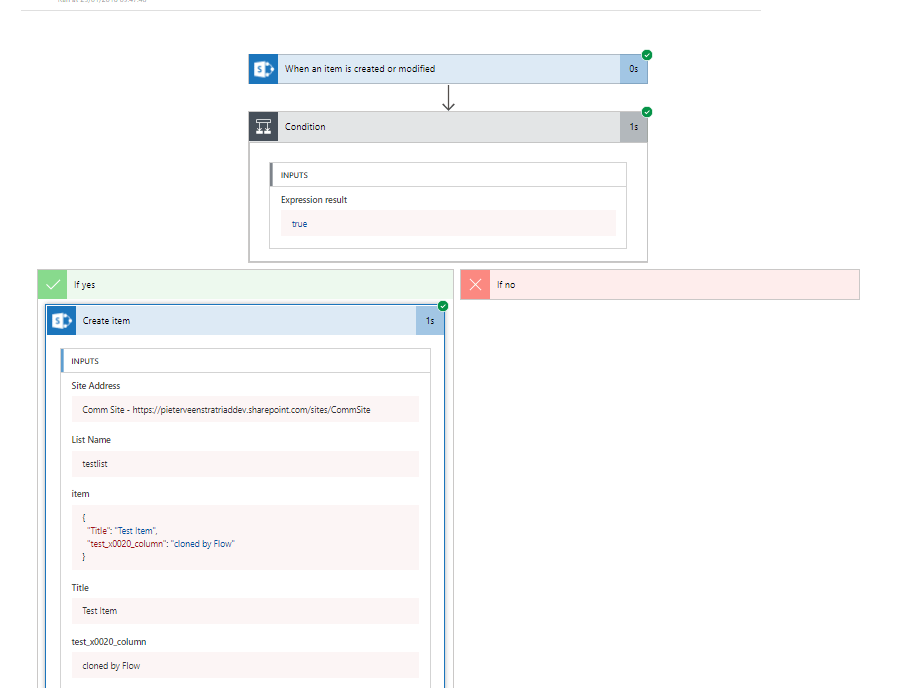

When you click on the history of one of the flows that clones my list item you will now see what the Create Item actually did.

Migrate to Power Automate from SharePoint Designer practical examples - part 1 - Clone list items Microsoft Flow, Microsoft Office 365, SharePoint Designer createitemdetails

How often did you include a Log action in SharePoint Designer just to spit out some information helping you to debug the workflow? Flow simply gives you the details in the run history.

By Pieter Veenstra

Business Applications and Office Apps & Services Microsoft MVP working as a Microsoft Productivity Principal Consultant at HybrIT Services. You can contact me using contact@veenstra.me.uk.
