In this post I will look at actions and triggers available in the Common Data Service connector.

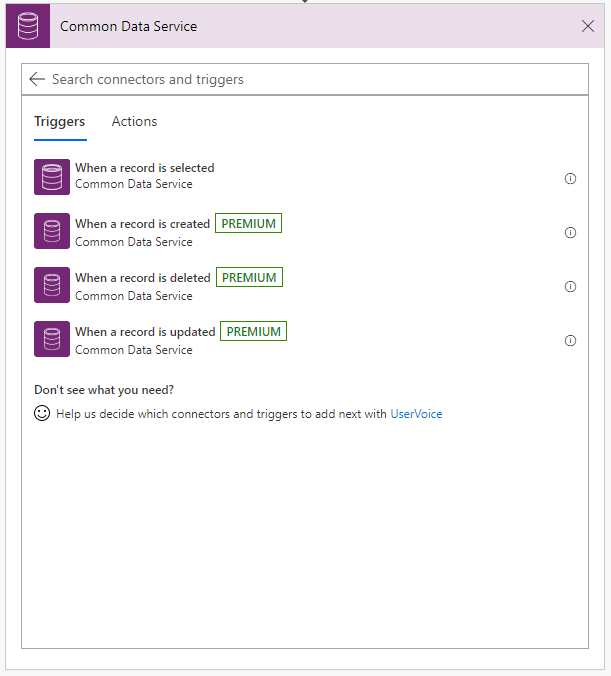

The Triggers
As part of my Common Data Services series I’m looking at the Common Data Service connector in Microsoft Flow. As with many connectors there are triggers and actions available within the CDS connector. The 4 triggers and 5 actions give you basic CRUD operations and the option to start your flows when basic CUDS (Create, Update, Delete and Select) operations happen.
3 of the 4 triggers are marked as premium hence you will need to ensure that you have the right licences in place. The 4 triggers are:
- When a record is selected
- When a record is created
- When a record is deleted
- When a record is updated

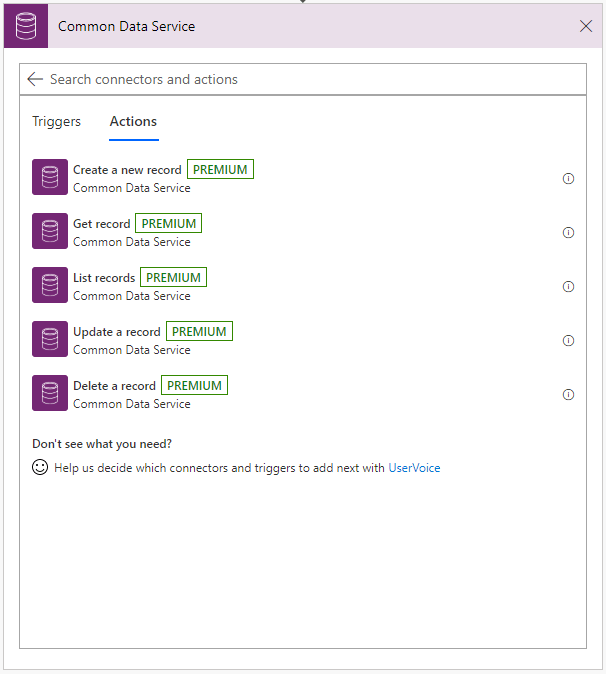

The Actions
All 5 action are marked as premium hence you will need to ensure that you have the right licences in place if you use these actions. The 5 actions available are:
- Create a new record
- Get record
- List records
- Update a record
- Delete record

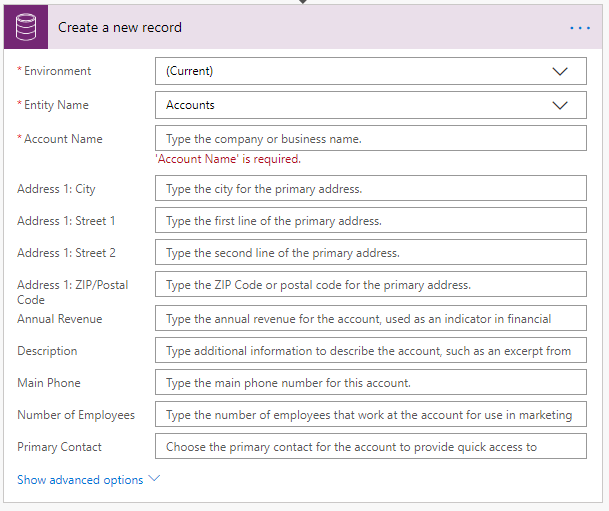

The 5 actions available all are easy to use. It is for example quite easy to create a new account simply by selecting the environment and the entity in the Create a new record action. Once you have selected the environment and the entity you can supply the field values that want to use. When you copy your flows between environment however you will need to make sure that you custom entities are matching in both environments.
The List records action helps you get to all your records that match a query.
For more information on querying records see Microsoft Flow – Filter queries in the List records action in the Common Data Services connector
The Get record action is used if you know which item you want and you have the unique identifier of the record available to query the CDS.
More information about CDS
Common Data Service – a complete overview
Hi Pieter,
Thanks for the write-up on the CDS connectors. Quick question – if I’m using the “when a record is updated” connector and use the Filter Attribute advanced option, the flow should only run when those specific attributes in the entity are edited right?
I’ve been playing around with it and even with attributes set, the flow is running when any attributes in the entity are updated…
Any thoughts would be appreciated.
Thanks!
I haven’t used that option and it seems to be a bit unclear how it works. I will try to find out what we’re doing wrong.
