Secure your Power Automate Input and Output

Today, I noticed a new security feature in Power Automate. It is now possible to secure your data in flows. When you secure your input and output in flows you will not be able to see data in your actions as you hide information in your flow runs.

What does that look like?

Secure your Input and Output in flows

When you secure your data you will now see in your Flow runs.

Content not shown due to security configuration
Secure your Input and Output in flows, Content not shown due to security configuration

Securing your Input and Output settings

The security settings can be configured at the action/step level using the settings option for each of the actions in your flow.

Securing Input and Secure Output

You can both secure the input and the output.

Note that you may see

The secureData configuration of workflow action ' ' of type ' ' ... There values are not supported in properties
The secureData configuration of workflow action Compose

You will find that in some actions it is not possible to secure the input and or output or both.

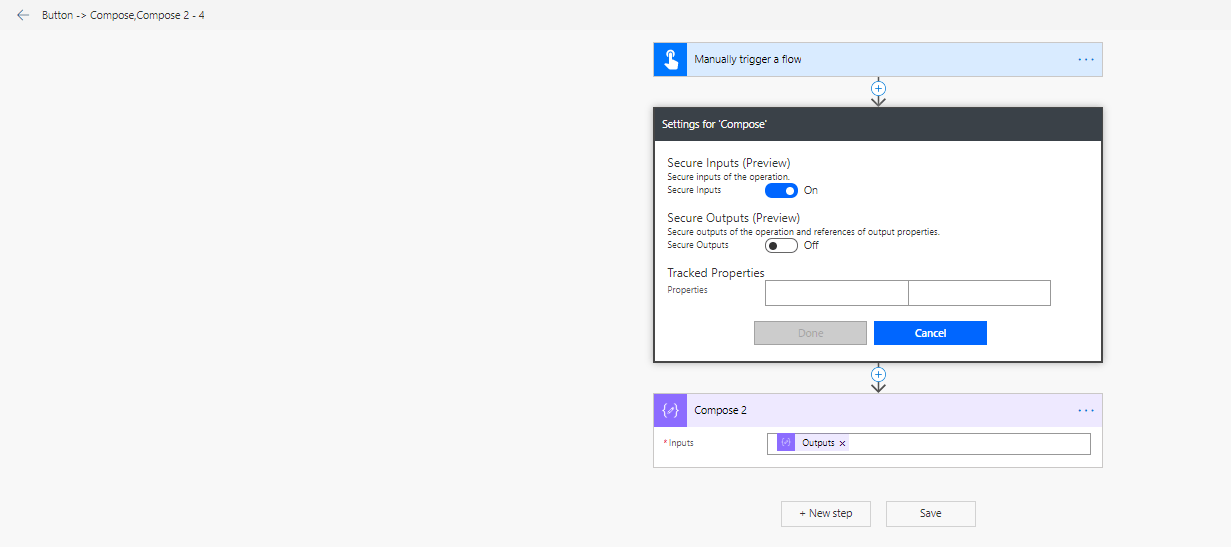

In my example I reduced the security settings just to the input

Saved Compose with Input Lock only

This now added a lock to my action in edit mode so that I can easily recognise the locked actions.

Lock added to action

Also in the Dynamic content you can recognise the locked data

Lock added to dynamic content

In the above example the input sand the output of the Compose contains the same data hence the problem locking both at the same time.

Secure your Output only

When we take a SharePoint action to get items from my SharePoint site, I can lock the output only as shown below:

Output Only hidden

When using the Preview feature be careful as it makes it extremely hard to debug any mistakes. However if you have any data that needs securing then you might want to implement this features once your process is all working.
