Create A UI Flow to test a Power App

Today I configured my UI Flow environment as I tried to test my Power Apps using UI Flow. In this post I’m describing the issue that I hit on my way.

Create New UI Flows

I started by creating a new UI Flow and I want this UI flow to open a Power App that I created.

Create a UI Flow

When I clicked on the Launch recorder however I needed to get some extension installed first. If you don’t install the extensions then you will get the following warning.

We weren’t able to find the UI flows browser extension running

We weren't able to find the UI flows browser extension running

Install the browser extension

Then when I installed the browser extension in my browser

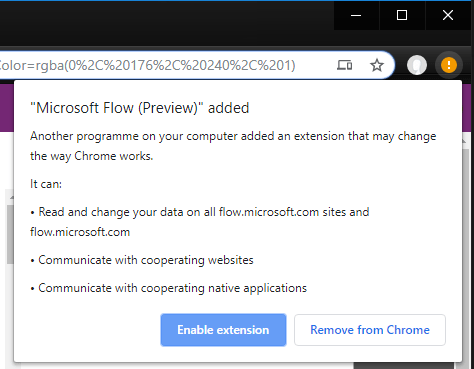

Enabled Microsoft flow Extension

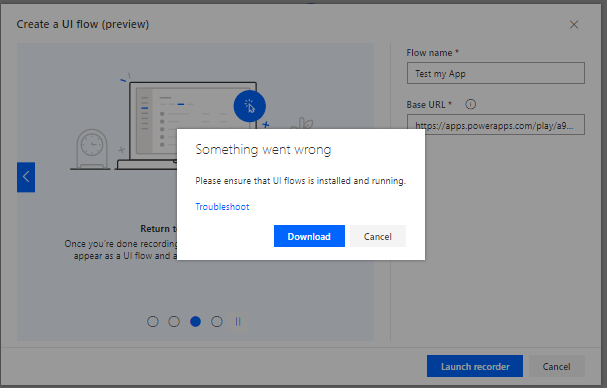

I was getting the following Something went wrong message

Something went wrong.  Pleae ensure that UI flows is installed and running

I tried reboots and browser restarts and the above message didn’t want to go away.

UI flows icon on desktop

An important thing is that you run the UI Flows process. You can find the icon on your desktop. This is a bit slow to start (or at least I didn’t notice anything for a while)

But still the something went wrong message wasn’t going away. Then I noticed that I had more than one of these processes running.

Too many UI flow processes running

Like I said earlier, it does work but you might miss that is has already started. Killing the above Flow processes and just starting it once and hurray, I got a different message. Still Something went wrong but this time UI Flow wants the Selenium IDE extension.

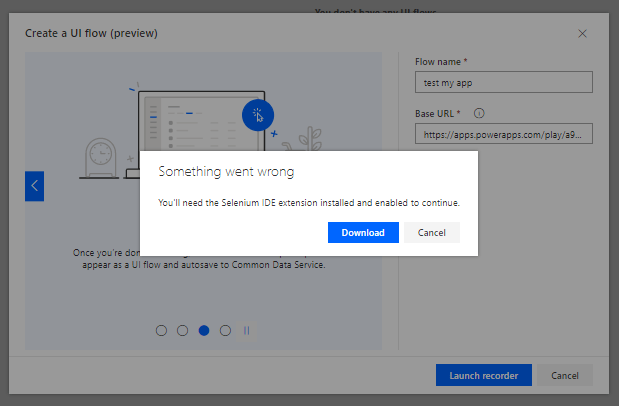

Something went wrong
You'll need the Selenium IDE extension installed and enabled to continue

After installing the Selenium extension my UI Flow was working as expected.

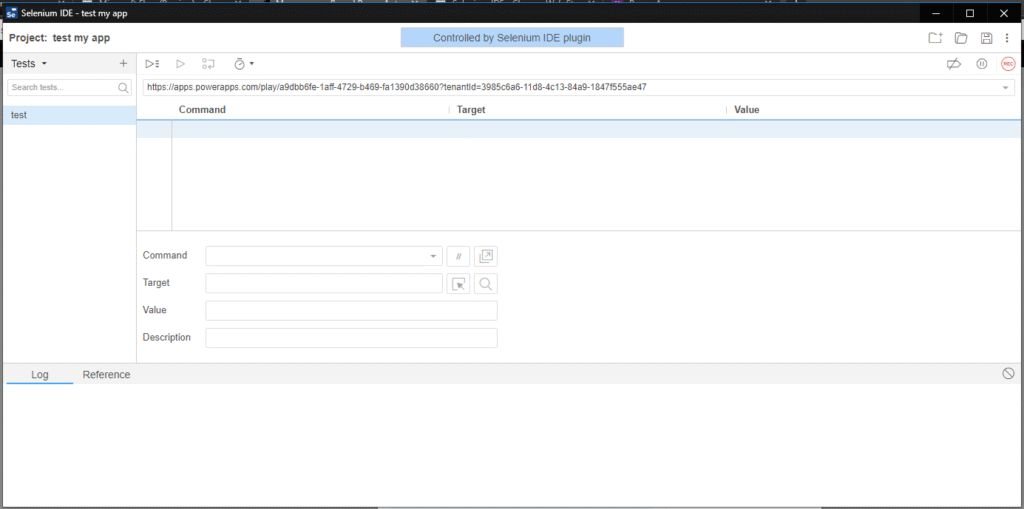

UI Flow recorder is running

In my next post I will look at how to test a Power App using UI Flow.
